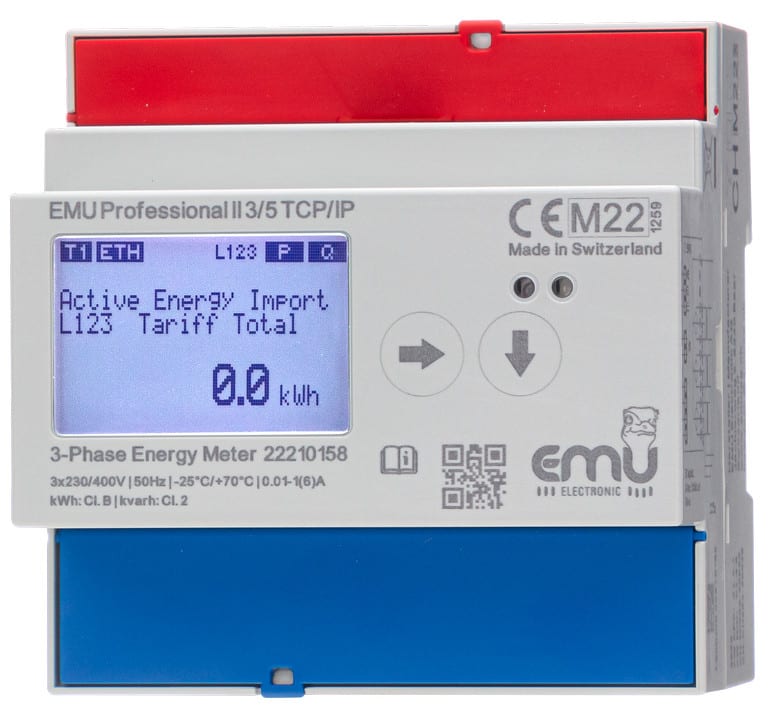

EMU Metering - EMU Professional II 3/5 TCP/IP Electricity Meter Load Profile Measurement Indirect DINrail MID Certified - P21A030T

Electronic three-phase electricity meter for DINrail mounting. Detection of active and reactive energy, consumption and production (import / export), power factor on all phases. Also approved for Photovoltaics and Windparks. Current transformer measurement up to 5A. Load Profile Measurement. TCP/IP communication and webserver.

• Bidirectional three-phase power meter with LAN TCP/IP interface

• Remote reading via Modbus TCP and API

• Webserver access protection with password

• Logbook for events and configuration changes related to weights and measures regulations

• Logging of different measurement values and export to CSV or via API

• Memory depth of over 3 years at a 15-minute interval

• 3x230/400V

• 1 or 5 A transformer connection for up to 20000/5 or 4000/1 A

• MID B+D, for billing purposes

• PTB-A 50.7 approval

• Accuracy class B (1%)
