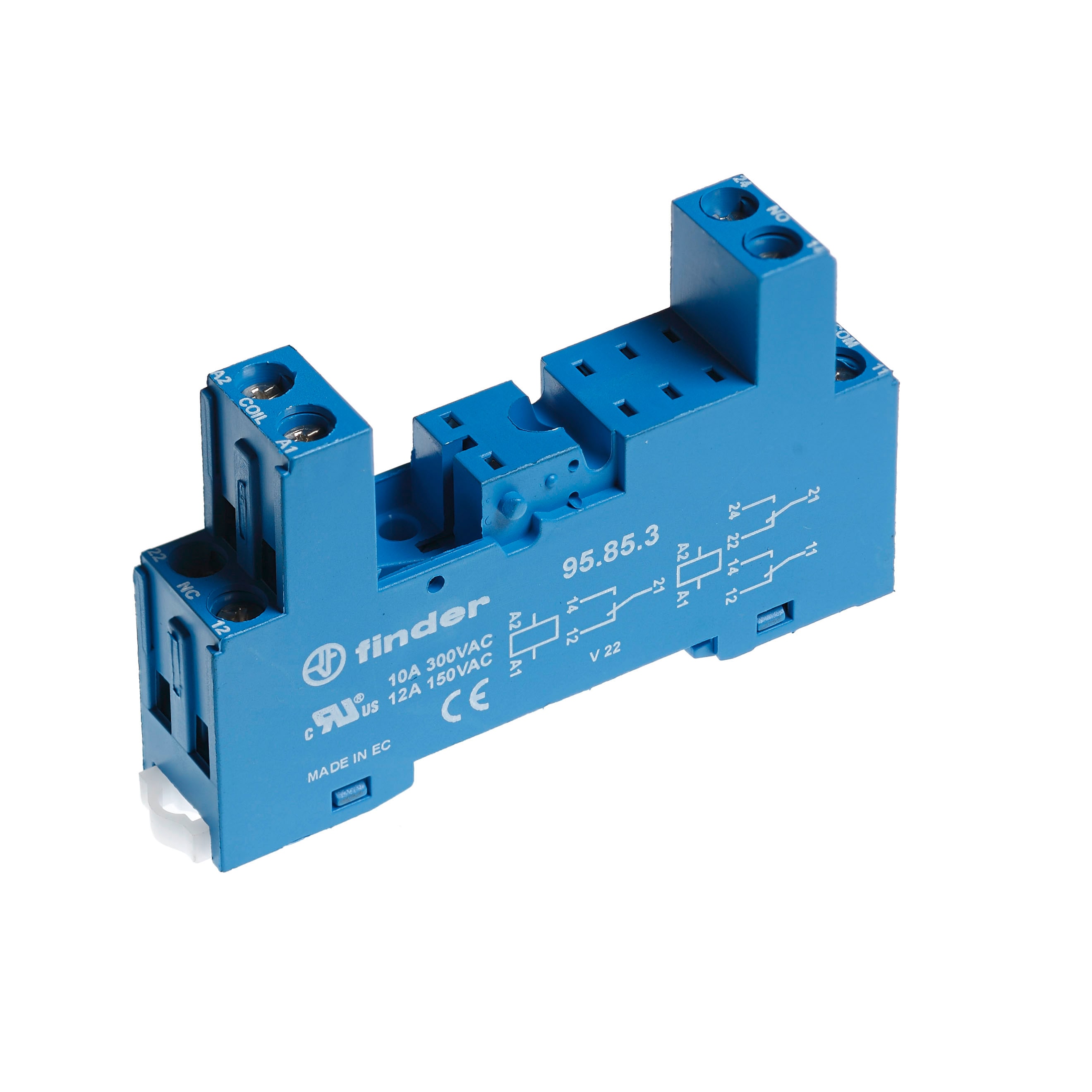

Finder - 95 series - Sockets etc for 40,41,43,44 - 95.85.30SMA
/ 10 each
£4.97
Delivery
Essential specifications
Type of electric plug connection - Screw connection
Mounting method - DIN rail (top hat rail) 35 mm
Number of pins - 5
Width - 81.9 mm
Height - 46.8 mm
Packaging
1 each
GTIN
Supplier Ref
95.85.30SMA
Manufacturer Ref
95.85.30SMA
Commercial Reference
95.85.30SMA
Type of electric plug connection:
Screw connection
Mounting method:
DIN rail (top hat rail) 35 mm
Number of pins:
5
Width:
81.9 mm
Height:
46.8 mm
With detachable clamps:
no
Function extension possible:
no
Depth:
15.5 mm
95 series - Sockets etc for 40,41,43,44 series - Socket with bush terminals for panel or bar mounting 35 mm (EN 60715). Rated values: 10 A - 250 V (With currents of 10 A, the contact terminals must be connected in parallel (21 to 11, 24 to 14, 22 to 12).), Dielectric strength 6 kVi, Degree of protection: IP 20, Ambient temperature:+70, Tightening torque: 0.5 Nm, Cable stripping length: 7 mm. Colour Black.
Finder
