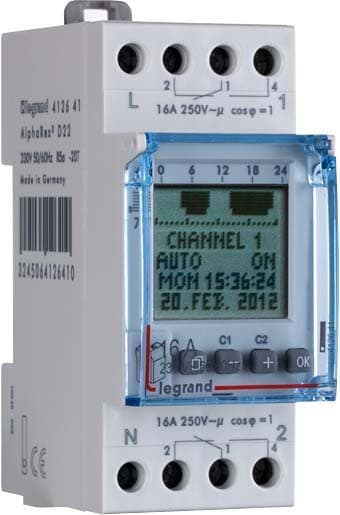

Legrand - Alpharex3 D22 230v 16a 2ch - 412641

Mounting method:

DIN rail

Number of channels:

2

Supply voltage:

230...230 V

24 h program:

yes

Weekly program:

yes

Voltage type of supply voltage:

AC

Frequency supply voltage:

50...60 Hz

Autonomy in years:

5

Accuracy per day:

0.1 s

Text guidance in display:

yes

External programming:

no

Memory card included:

no

60 min. program:

no

Annual program:

yes

Holiday program:

yes

Impulse program:

no

Cycle program:

yes

Astro/solar program:

no

Random program:

yes

Hour meter:

yes

Mains synchronous:

yes

Quartz controlled:

yes

Radio-controlled:

no

Radio-controlled (DCF77):

no

GPS (global positioning system):

no

Contact type:

Change-over contact (NO/NC)

Shortest switching time channel 1:

9.996 s

Number of memory locations:

56

Automatic switching summer-/winter time:

yes

Manual operation:

yes

External pushbutton input:

no

Switching preselection:

yes

Nominal switching current at 250 V AC:

16 A

Potential free switch contact:

yes

IP-rating:

IP20

Width in number of modular spacings:

2

Width:

35.6 mm

Height:

83 mm

Depth:

60 mm
