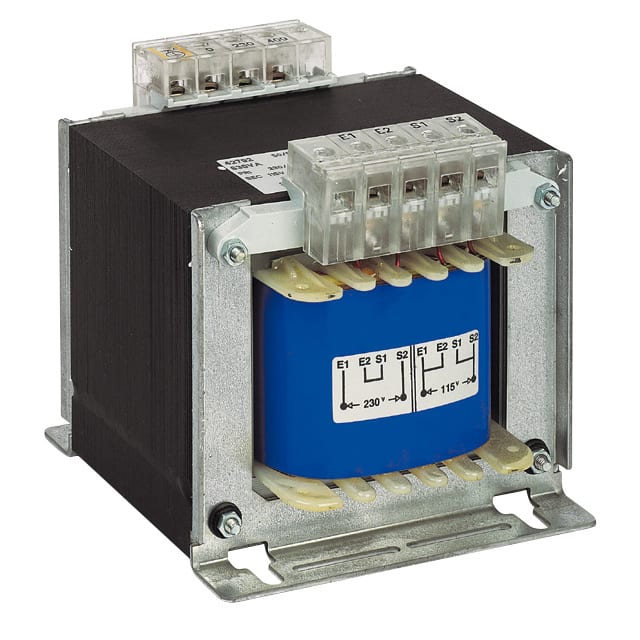

Legrand - Comp Tx230/400v-115/230v 310VA - 042790

Built as safety transformer:

no

Primary voltage 1:

230...230 V

Secondary voltage 1:

115...115 V

Rated apparent power:

310 VA

IP-rating:

IP2X

Built as isolating transformer:

yes

Built as autotransformer:

no

Primary voltage 2:

400...400 V

Secondary voltage 2:

230...230 V

Type of insulation material acc. IEC 85:

B

Short-circuit-proof:

no

Relative short circuit voltage:

8.2 %

Width:

106 mm

Height:

123 mm

Depth:

115 mm

Ring core:

no

Suitable for mounting on PCB:

no
