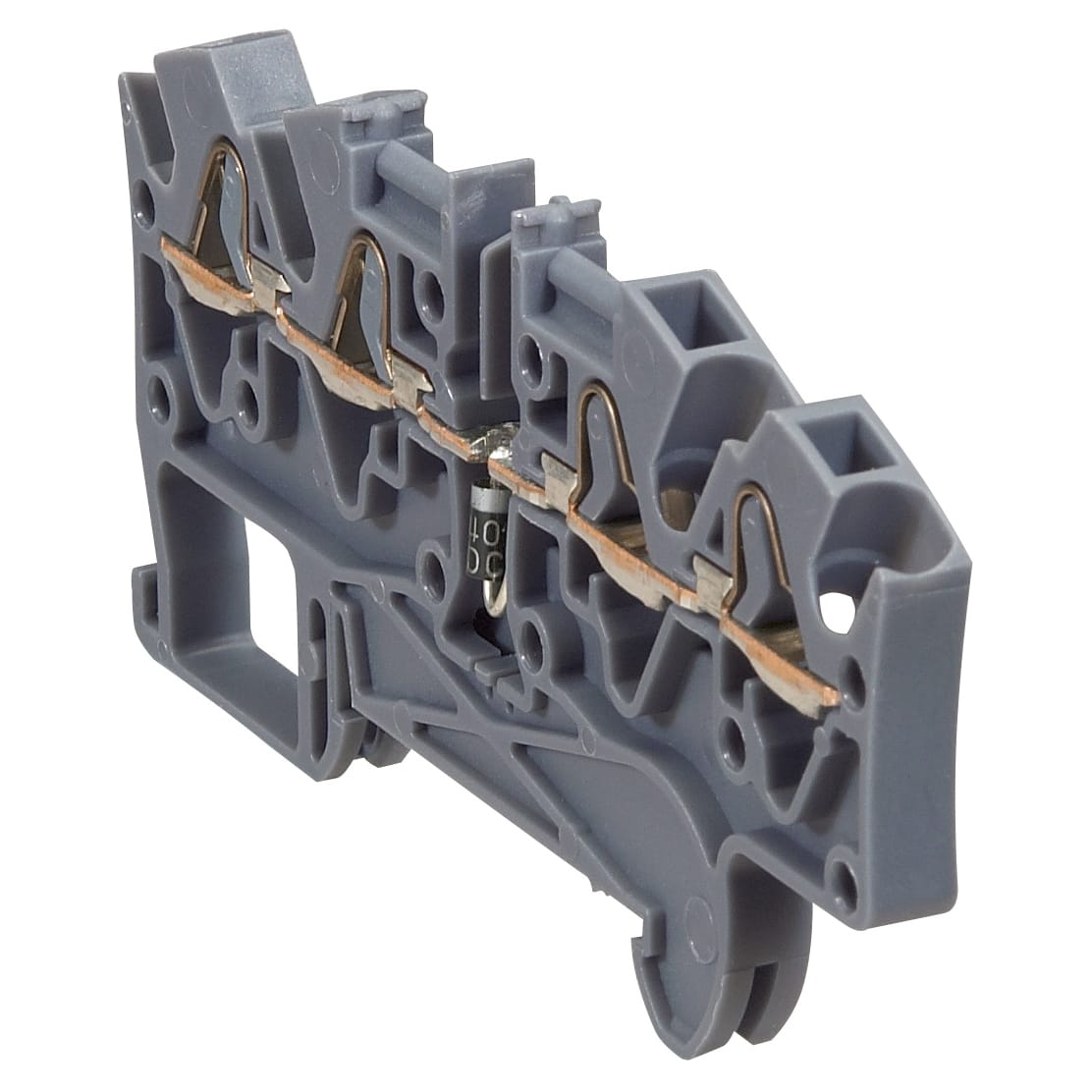

Legrand - Diode Carrier Spring Terminal - 037254

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...6 mm²

Rated current In:

1 A

Type of electrical connection 1:

Spring clamp connection

Number of clamp positions per level:

4

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...2.5 mm²

Connectable conductor cross section solid-core:

0.5...6 mm²

Connectable conductor cross section multi-wired:

0.5...4 mm²

Rated voltage:

500 V

Type of electrical connection 2:

Spring clamp connection

Number of levels:

1

Material insulation body:

Thermoplastic

Operation temperature:

-5...40 °C

Width:

5 mm

Depth:

85 mm

Explosion-tested version 'Ex e':

no

End plate required:

yes

Colour:

Other

Internally connected levels:

no
