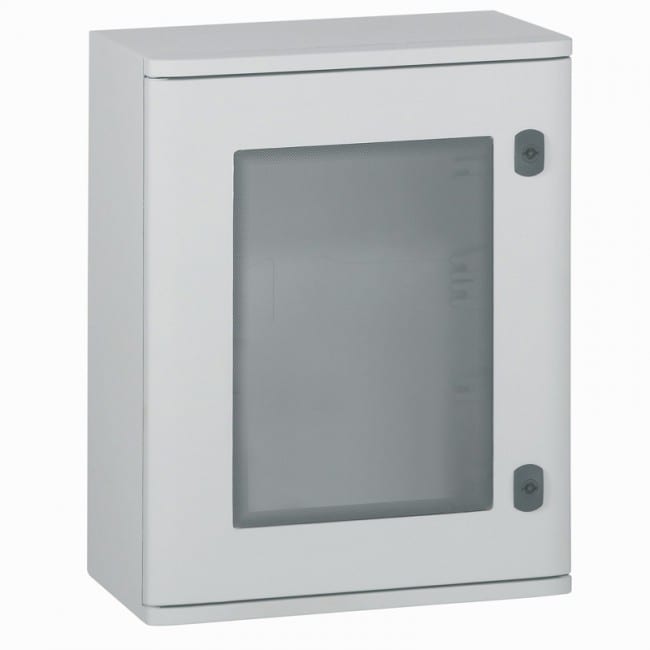

Legrand - Enclosure Grp 600x400x200 - 036275
/ each
£368.78
Delivery
Essential specifications
Mounting method - Surface mounted
Type of covering - Door
Cover model - Closed
Material housing - Plastic
Type of door - Single
Packaging
1 each
GTIN
Supplier Ref
036275
Manufacturer Ref
036275
Commercial Reference
036275
Mounting method:
Surface mounted
Type of covering:
Door
Cover model:
Closed
Material housing:
Plastic
Type of door:
Single
Transparent cover/door:
yes
With lock:
yes
Height:
600 mm
Width:
400 mm
Depth:
250 mm
Built-in depth:
255 mm
Internal depth:
225 mm
Plate thickness cabinet:
2.5 mm
Plate thickness door/cover:
2.8 mm
Colour:
Grey
RAL-number:
7035
Number of openings for flange plates:
0
Extension possible:
no
Surface treatment:
Untreated
With mounting plate:
no
Suitable for outdoor use:
yes
Suitable for lightning protection:
no
IP-rating:
IP66
Protection class:
II
IK Rating:
IK10
Circuit integrity:
None
Cabinet Marina - polyester with glass door - IP66 - IK10 - 600x400x250 mm
- IP 66 according to IEC EN 60529. LCIE n°60059283-560528.
- IK 10 according to IEC EN 62262 (EN 50102).
- Class II (used to create totally isoled assemblies acc. to EN 60439-1 and assemblies for photovoltaic installations acc. to UTE C15-712-1).
- Fiber glass reinforced polyester. Self-extinguisting 960°C acc. to IEC EN 60695-2-11.
- Adapted to corrosive environment and different weather conditions (detailed technical sheet available on e-catalogue).
- Reversible door, opening 180°, (except Cat.No 0 362 50). Stainless steel hinge pins (except Cat.No 0 362 50). 2 double bar lock (1 lock for Cat.No 0 362 50).
- Direct fixing of equipment at bottom of cabinet (screws supplied).
- Possible to fit a partial plate from 500 x 400 x 200 mm and/or rails on intermediate studs (except for Cat.No 0 362 50).
- Optional depth adjustment from height 400 x width 300 mm with Cat.No 0 362 42.
- Can be equipped with Atlantic accessories
