Legrand - Power Supply Rec Fil 24V 240W 15A - 047025
/ each
£756.28
Delivery
Essential specifications
Voltage type of supply voltage - AC/DC
1st secondary output voltage - 24...24 V
Max. output current 1 - 15 A
Secondary voltage adjustable - no
Nominal value output voltage 1 - 24 V
Packaging
1 each
GTIN
Supplier Ref
047025
Manufacturer Ref
047025
Commercial Reference
047025
Voltage type of supply voltage:
AC/DC
1st secondary output voltage:
24...24 V
Max. output current 1:
15 A
Secondary voltage adjustable:
no
Nominal value output voltage 1:
24 V
Nominal value output current 1:
15 A
Short-circuit-proof:
yes
Rated supply voltage at AC 50 Hz:
230...400 V
Rated supply voltage at AC 60 Hz:
230...400 V
Output voltage stabilized:
no
Power output:
360 W
Stabilized:
no
Type of electric plug connection:
Screw connection
Rail mounting possible:
no
Suitable for wall mounting:
yes
Suitable for DIN installation panels:
no
Direct mounting possible:
yes
Width:
126 mm
Height:
206 mm
Depth:
175 mm
Suitable for safety functions:
yes

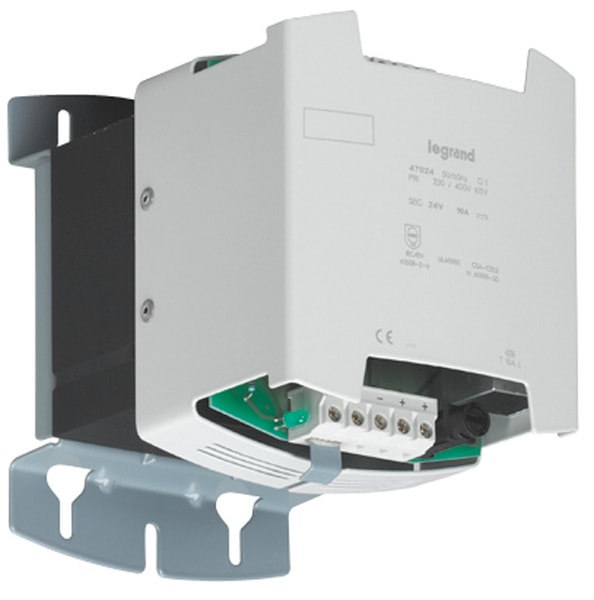

Power Supply Rec Fil 24V 240W 15A
- Single phase filtered Filtered power supplies for PLCs and other equipment requiring a voltage of 12 V DC or 24 V DC Include: * twin output terminals for ease of connection * safety transformer with interference filtration * fuse protection on output * green LED output voltage indicator * capacitor in filtered range Supplied with a connection link for quick connection between - up to 15A Fixing options: - clip directly to DIN rail up to 24 W - clip on or screw fixing up to 120 W - screw fixing only above 120 W
