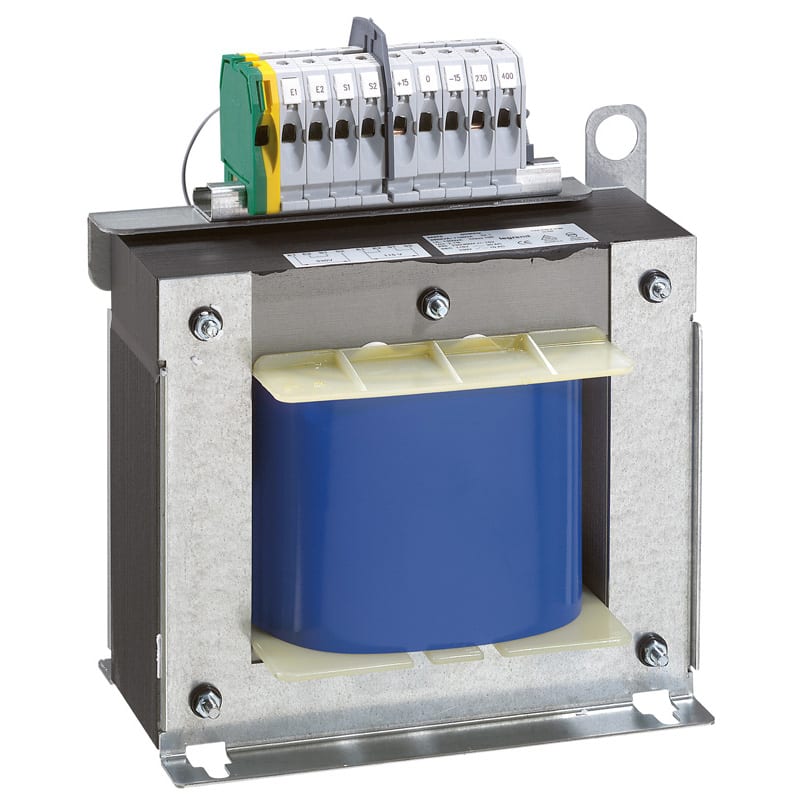

Legrand - Pri 230 - 400v S24-48v 1600va - 044239

Built as safety transformer:

yes

Primary voltage 1:

215...215 V

Secondary voltage 1:

24...24 V

Rated apparent power:

1600 VA

IP-rating:

Other

Built as isolating transformer:

no

Built as autotransformer:

no

Primary voltage 2:

230...230 V

Primary voltage 3:

245...245 V

Primary voltage 4:

385...385 V

Primary voltage 5:

400...400 V

Primary voltage 6:

415...415 V

Secondary voltage 2:

48...48 V

Type of insulation material acc. IEC 85:

B

Short-circuit-proof:

no

Relative short circuit voltage:

1.66 %

Width:

220 mm

Height:

245 mm

Depth:

191 mm

Ring core:

no

Suitable for mounting on PCB:

no
