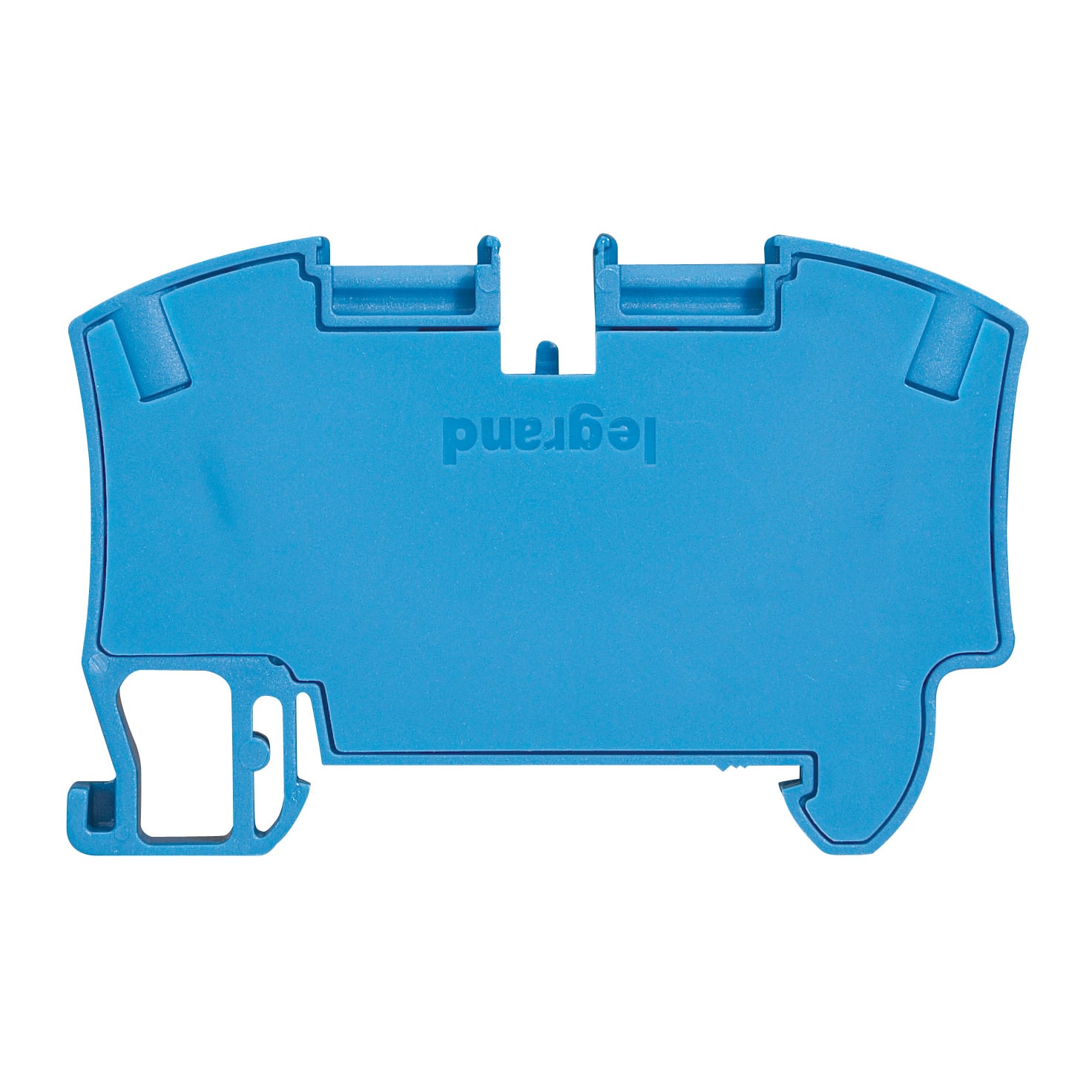

Legrand - Spring 6mm Blue 1 Entry 1 Exit - 037202

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...6 mm²

Rated current In:

41 A

Type of electrical connection 1:

Spring clamp connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...6 mm²

Connectable conductor cross section solid-core:

0.5...6 mm²

Connectable conductor cross section multi-wired:

0.5...6 mm²

Rated voltage:

800 V

Type of electrical connection 2:

Spring clamp connection

Number of levels:

1

Material insulation body:

Thermoplastic

Operation temperature:

-5...40 °C

Width:

8 mm

Depth:

66.5 mm

Explosion-tested version 'Ex e':

no

End plate required:

no

Colour:

Blue

Internally connected levels:

no
