Legrand - Terminal StrIPs 2.5a white - 034221
/ 10 each
£3.85
Delivery
Essential specifications
Rated current In - 24 A
Type of electrical connection 1 - Screw connection
Number of poles - 12
Mounting method - Other
Drill hole distance centrically - 2.5 mm
Packaging
1 each
GTIN
Supplier Ref
034221
Manufacturer Ref
034221
Commercial Reference
034221
Rated current In:
24 A
Type of electrical connection 1:
Screw connection
Number of poles:
12
Mounting method:
Other
Drill hole distance centrically:
2.5 mm
Explosion-tested version 'Ex e':
yes
Rated voltage:
250 V
Type of electrical connection 2:
Screw connection
Number of clamp positions per pole:
2
Material insulation body:
Thermoplastic
Operation temperature:
-25...100 °C
Inflammability class of insulation material acc. with UL94:
Other
End plate required:
no
Colour:
White
Transparent:
no

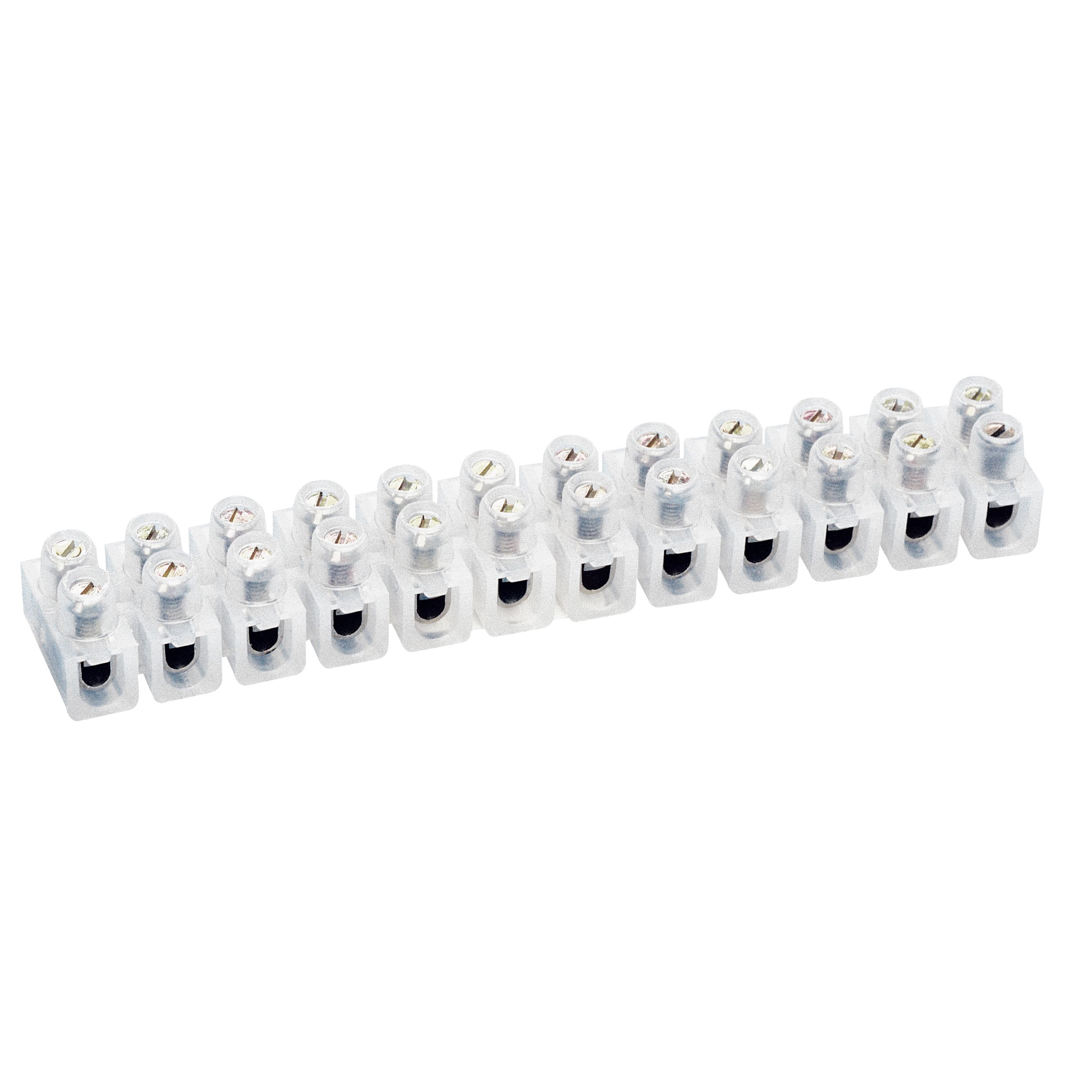

Connection strip Nylbloc - capacity 2.5 mm² - max. current 24 A - white
- 12 elements with captive screws
- Supplied with screws undone
- Flame retardant polypropylene (– 25 °C to + 100 °C)
- Ambient temperature from – 25 °C to + 55 °C (T 55)
- Conform to EN 60998-2-1 and EN 60664-1
- Self-extinguishing to EN 60695-2-11 at 850
- Insulation voltage: 250 V according to EN 60 998-2-1
- Use at 400 V integrated in a series of products that comply with the requirements of EN 60664-1, pollution degree 2, overload category III
