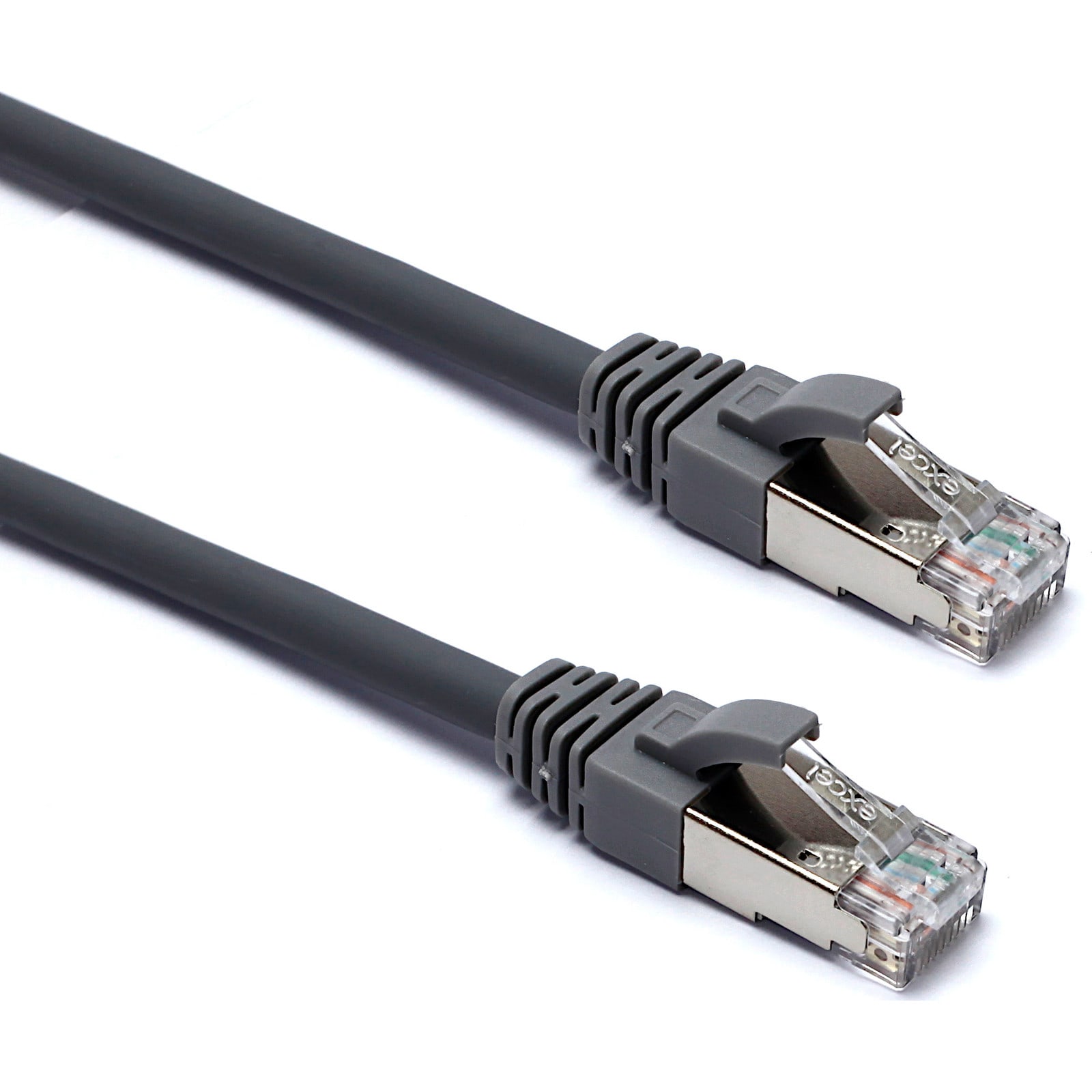

Mayflex - Excel Cat6A Patch Lead F/FTP Shielded LSOH Blade Booted 10 m Grey - 100-177
/ each
£20.35
Delivery
Essential specifications
Cable type - F/FTP
Category - 6A (IEC)
Length - 10 m
Type of connector connection 1 - RJ45 8(8)
Type of connector connection 2 - RJ45 8(8)
Packaging
1 each
GTIN
5055540502274
Supplier Ref
100-177
Manufacturer Ref
100-177
Commercial Reference
100-177
Cable type:
F/FTP
Category:
6A (IEC)
Length:
10 m
Type of connector connection 1:
RJ45 8(8)
Type of connector connection 2:
RJ45 8(8)
Outer sheath colour:
Grey
Strain relief boot:
Moulded-on
Lockable:
no
Strain relief boot colour:
Grey
Flame retardant:
In accordance with EN 60332-3-24
Cable construction:
1x4
AWG-size:
26
Pin assignment:
1:1
Excel Category 6A (Augmented Category 6) patch leads take the performance capabilities of copper infrastructure to new levels. Designed to the current ISO and EIA/TIA standards for Class Ea augmented Category 6A performance these products are intended to deliver reliable, high network performance including support of emerging applications such as 10GBase-T, 10 Gigabit Ethernet.
Each Excel Category 6A patch lead consists of 4 twisted pairs of 26AWG stranded copper wires, an aluminium/polyester foil tape provides an individual screen for each pair. These pairs are then cabled together, with different lay lengths to ensure optimum performance. Staggered pin RJ45 Screened plugs, terminate the cable, and each lead is fitted with colour coded slimline moulded boots, suitable for use in high density router or switch blades.
- Specified to 500 MHz
- Suitable for 10 Gigabit 10GBase-T, PoE++ applications
- Individual foil screen over each pair
- Blade style moulded strain relief boot with clip protector
- LSOH outer sheath
