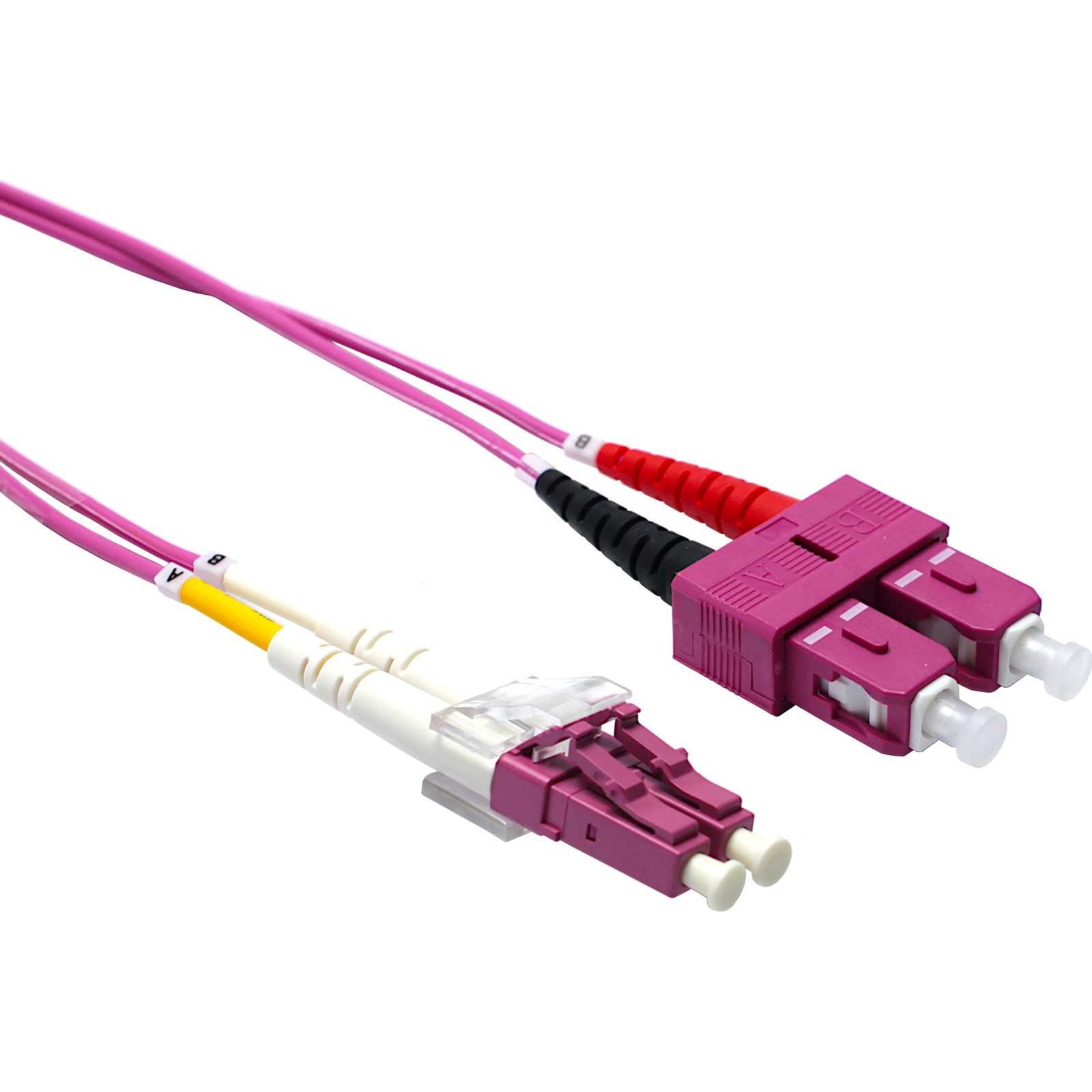

Mayflex - Excel Enbeam OM4 Fibre Optic Patch Lead LC-SC Multimode 50/125 Duplex LSOH Violet 5 m - 204-337
/ each
£11.62
Delivery
Essential specifications
Number of Cores - 2
Fibre type - Multi mode 50/125
Category - OM4
Strain relief - yes
Outer sheath colour - Violet
Packaging
1 each
GTIN
Supplier Ref
204-337
Manufacturer Ref
204-337
Commercial Reference
204-337
Number of Cores:
2
Fibre type:
Multi mode 50/125
Category:
OM4
Strain relief:
yes
Outer sheath colour:
Violet
Low smoke (acc. IEC 61034-2):
yes
Outer diameter approx.:
2.8 mm
Excel OM4 50/125 µm duplex patch leads are manufactured from the highest quality 900 µm buffer/jacket optical fibre, terminated with ceramic ferrule connectors.
Each cable has strain relief boots to prolong and maintain performance levels of the assembly, transmit and receive "legs" of each duplex cable are identified by means of ring type cable marker fixed to each end the assembly. A short distance from these identification rings heat shrink is applied to maintain an easy to manage bonded two fibre cable, finally a label containing a unique batch number is fixed to the centre of cable for quality and traceability purposes.
- 100% optically tested
- Test certificate included
- Low loss connectors
- Zirconia ceramic PC ferrules
- Polarity changeable (duplex connectors)
- Bend insensitive construction
