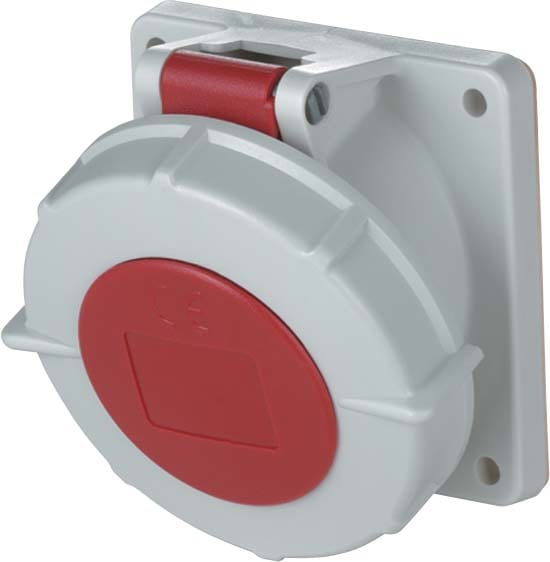

Mennekes - ang.Panel Socket IP67 32A 5p 400V 6h Twi - 1808

IEC-amperage:

32 A

Amperage acc. UL/CSA (for UL-version):

30 A

Voltage acc. EN 60309-2:

400 V (50+60 Hz) red

Rated frequency:

50...60 Hz

Number of poles:

5

Clock hour position:

6 h

Identification colour:

Red

IP-rating:

IP67

Connection system:

Screw less terminal

Plug-in direction:

Angled

Material:

Plastic

Military model:

no

Flange size vertical:

100 mm

Drill hole distance vertical:

85 mm

Flange size horizontal:

92 mm

Drill hole distance horizontal:

77 mm
