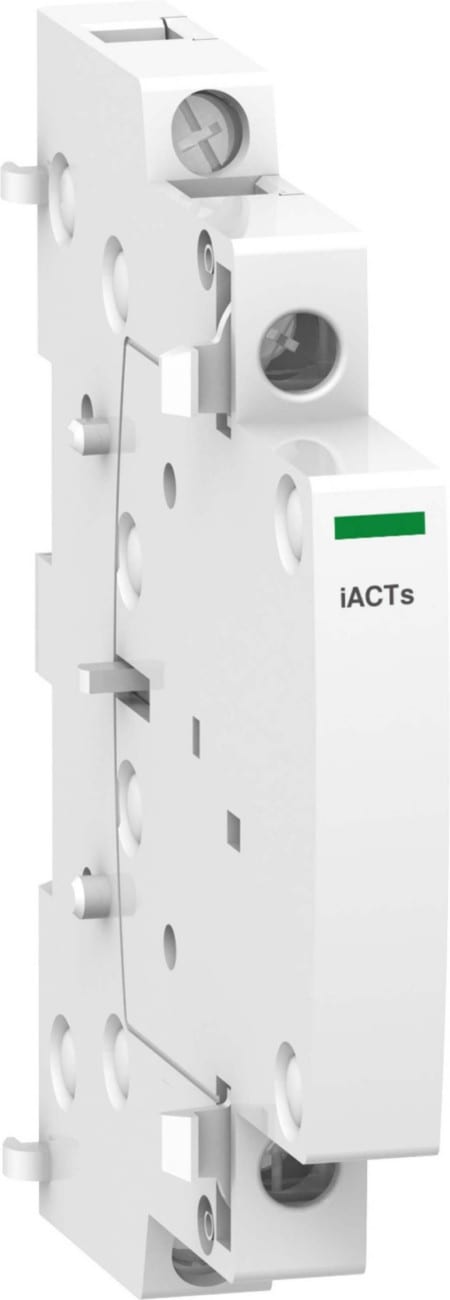

Merlin Gerin - ACTI9 IACTS 1NO-1NC 2A INDICATION AUXILI - A9C15914
/ each
£37.39
Delivery
Essential specifications
Device fitting - Auxiliary switch / relay
Number of contacts as normally open contact - 1
Number of contacts as normally closed contact - 1
Number of contacts as change-over contact - 0
Function - Signalling switch
Packaging
1 each
GTIN
3606480088667
Supplier Ref
A9C15914
Manufacturer Ref
A9C15914
Commercial Reference
A9C15914
Device fitting:
Auxiliary switch / relay
Number of contacts as normally open contact:
1
Number of contacts as normally closed contact:
1
Number of contacts as change-over contact:
0
Function:
Signalling switch
Width in number of modular spacings:
0.5
Number of fault-signal switches:
0
Rated switch current:
5 A
Rated voltage:
240 V
Voltage type:
AC
With auto test for earth leakage function:
no
Suitable for max. number of poles main contact unit (total):
4
Suitable for max. current main contact unit:
100 A
Auxiliary contact, 1 OC. range of product: iCT - device short name: iACTs - product or component type: remote indication auxiliary. Benefits: - Easy to select, with a 1 to 4p wide range compliant with DIN standard, Peace of mind with the complete modular system, Flexible auxiliaries combination with a simple clip-on system, Consistent with the entire Acti 9 offer. Applications: - Control and monitoring of electrical circuits in all industrial, commercial and residential buildings., Control and monitoring of single- or three-phase loads up to 100A., interface between the control gear & power circuits for final circuits such as lighting, heating, roller blind, watering system, ovens, utility motors: ventilation, heat pump etc.
Merlin Gerin
