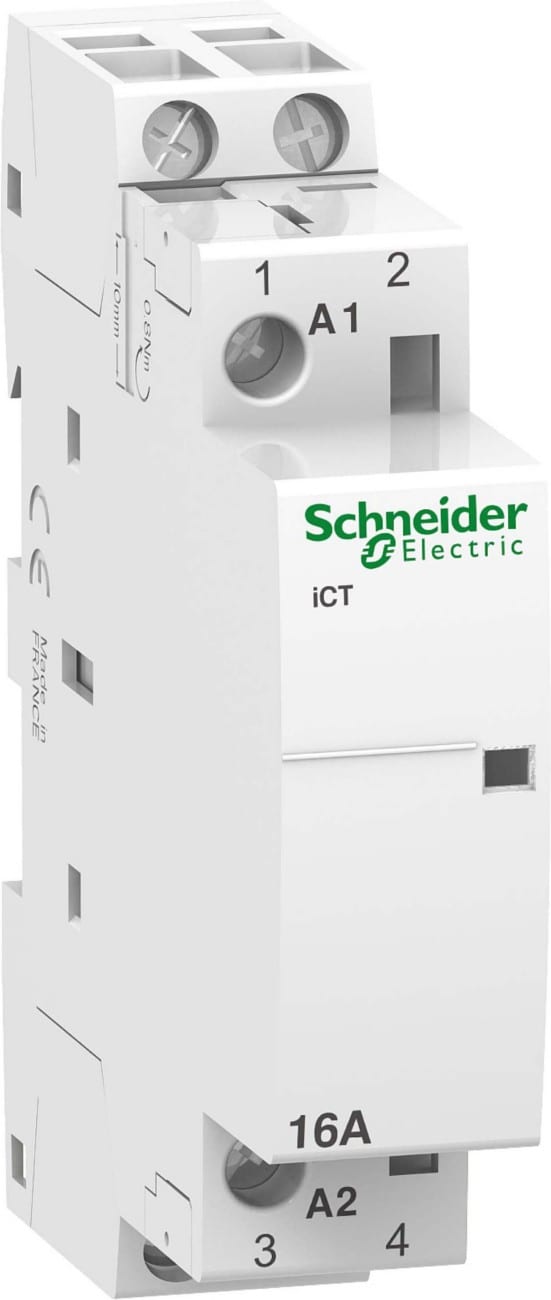

Merlin Gerin - ICT 16A 2NO 230...240VAC 50HZ CONTACTOR - A9C22712
/ each
£68.42
Delivery
Essential specifications
Rated operating voltage - 230...230 V
Rated operation current - 16 A
Voltage type (operating voltage) - AC
Number of contacts as normally open contact - 2
Number of contacts as normally closed contact - 0
Packaging
1 each
GTIN
3606480097058
Supplier Ref
A9C22712
Manufacturer Ref
A9C22712
Commercial Reference
A9C22712
Rated operating voltage:
230...230 V
Rated operation current:
16 A
Voltage type (operating voltage):
AC
Number of contacts as normally open contact:
2
Number of contacts as normally closed contact:
0
Rated excitation voltage:
230...230 V
Voltage type (excitation voltage):
AC
Max. incandescent lamp load:
2000 W
Slider for hand switch:
no
Width in number of modular spacings:
2
Built-in depth:
60 mm
Additional equipment possible:
yes
IP-rating:
IP20
iCT 16A 2NO 230...240V 50Hz contactor
- With exclusive features, Acti 9 iCT DIN rail contactor is definitely geared to absolute safety.
- Class-2 insulation : continuous safety for operators and unqualified personnel.
- Rating :16, 20, 25, 40, 63 & 100 A
- Number of poles: 1P, 2P, 3P, 4P
- Compliance with standards: EN 61095 and CEI 1095
- Electrical endurance (O-C): 100,000 cycles
- Maximum number of switching operations a day: 100
- 2 versions: standard contactors / manually operated contactors
- Optional auxiliary: state indication, interference filtering, dual control, time delay. Easy to select, with a 1 to 4 poles wide range compliant with DIN standard
- Peace of mind with the complete modular system
- Flexible auxiliaries combination with a simple clip-on system
- Consistent with the entire Acti 9 offer
