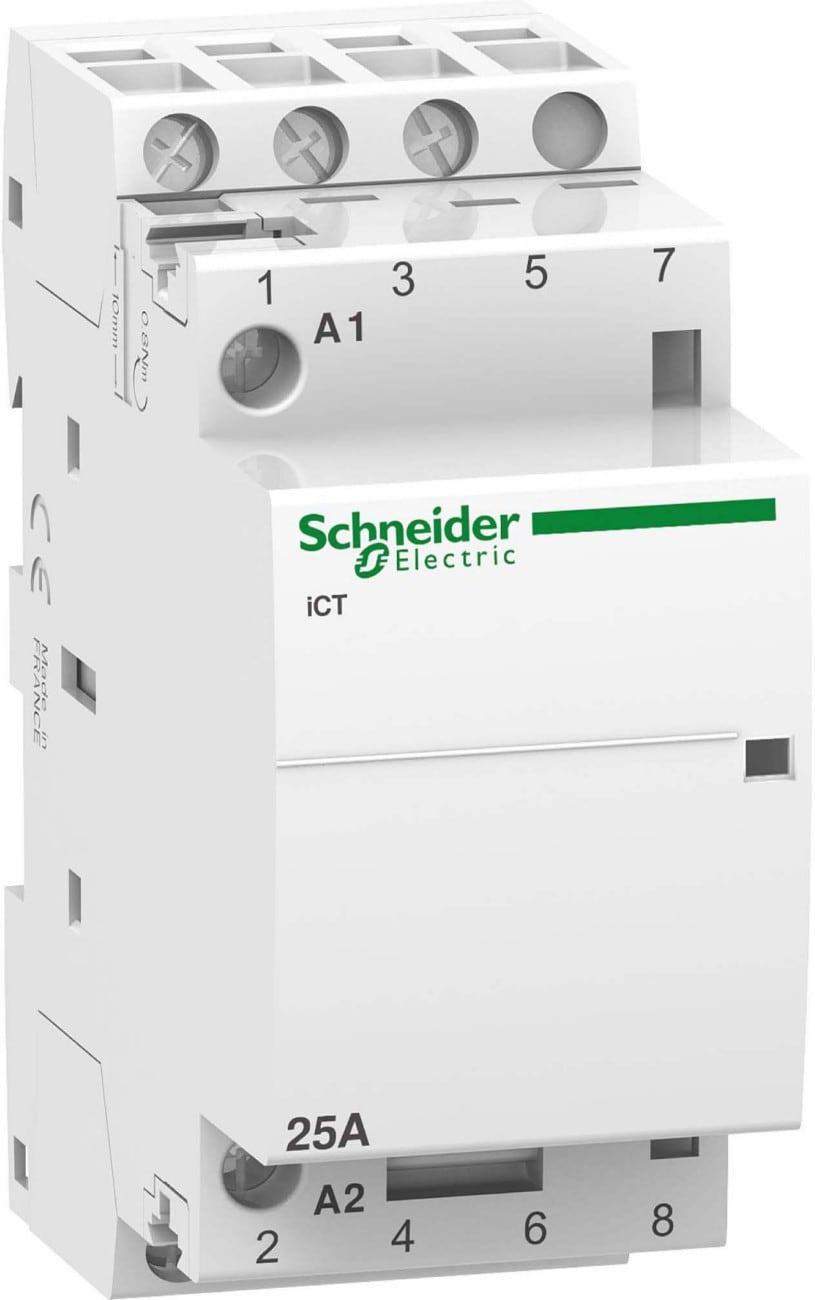

Merlin Gerin - ICT 25A 3NO 220...240VAC 50HZ CONTACTOR - A9C20833
/ each
£85.46
Delivery
Essential specifications
Rated operating voltage - 400...400 V
Rated operation current - 25 A
Voltage type (operating voltage) - AC
Number of contacts as normally open contact - 3
Number of contacts as normally closed contact - 0
Packaging
1 each
GTIN
3606480088582
Supplier Ref
A9C20833
Manufacturer Ref
A9C20833
Commercial Reference
A9C20833
Rated operating voltage:
400...400 V
Rated operation current:
25 A
Voltage type (operating voltage):
AC
Number of contacts as normally open contact:
3
Number of contacts as normally closed contact:
0
Rated excitation voltage:
230...230 V
Voltage type (excitation voltage):
AC
Max. incandescent lamp load:
2850 W
Slider for hand switch:
no
Width in number of modular spacings:
4
Built-in depth:
60 mm
Additional equipment possible:
yes
IP-rating:
IP20
Contactor iCT, 3p, 3 NO, 25A, 220..240 V AC. contactor application: motor-heating-lighting - range of product: iCT - product or component type: contactor - device short name: iCT - poles description: 3P - network type: AC - utilisation category: AC-1 conforming to EN 60947-4-1, AC-3 conforming to IEC 60947-4, AC-5A conforming to IEC 60947-4, AC-5A conforming to IEC 61095, AC-5B conforming to IEC 60947-4, AC-5B conforming to IEC 61095, AC-7A conforming to IEC 61095, AC-7B conforming to IEC 61095 - control type: remote control. Benefits: - Easy to select, with a 1 to 4p wide range compliant with DIN standard, Peace of mind with the complete modular system, Flexible auxiliaries combination with a simple clip-on system, Consistent with the entire Acti 9 offer. Applications: - Control and monitoring of electrical circuits in all industrial, commercial and residential buildings., Control and monitoring of single- or three-phase loads up to 100A., interface between the control gear & power circuits for final circuits such as lighting, heating, roller blind, watering system, ovens, utility motors: ventilation, heat pump etc.
- With exclusive features, Acti 9 iCT DIN rail contactor is definitely geared to absolute safety.
- Class-2 insulation : continuous safety for operators and unqualified personnel.
- Rating :16, 20, 25, 40, 63 & 100 A
- Number of poles: 1P, 2P, 3P, 4P
- Compliance with standards: EN 61095 and CEI 1095
- Electrical endurance (O-C): 100,000 cycles
- Maximum number of switching operations a day: 100
- 2 versions: standard contactors / manually operated contactors
- Optional auxiliary: state indication, interference filtering, dual control, time delay. Easy to select, with a 1 to 4 poles wide range compliant with DIN standard
- Peace of mind with the complete modular system
- Flexible auxiliaries combination with a simple clip-on system
- Consistent with the entire Acti 9 offer
