MTL - MTL TP24/7 Surge Protector - TP24/7-N-NDI
£301.00
/ each
£301.00
1
Delivery
Number of available items for delivery:0
Essential specifications
Nominal discharge surge current (8/20) - 3 kA
Nominal voltage AC - 24 V
Nominal voltage DC - 7 V
Max. continuous voltage AC - 34 V
Max. continuous voltage DC - 7 V
Packaging
1 each
GTIN
Supplier Ref
TP24/7-N-NDI
Manufacturer Ref
TP24/7-N-NDI
Commercial Reference
TP24/7-N-NDI
Nominal discharge surge current (8/20):
3 kA
Nominal voltage AC:
24 V
Nominal voltage DC:
7 V
Max. continuous voltage AC:
34 V
Max. continuous voltage DC:
7 V
IP-rating:
IP66

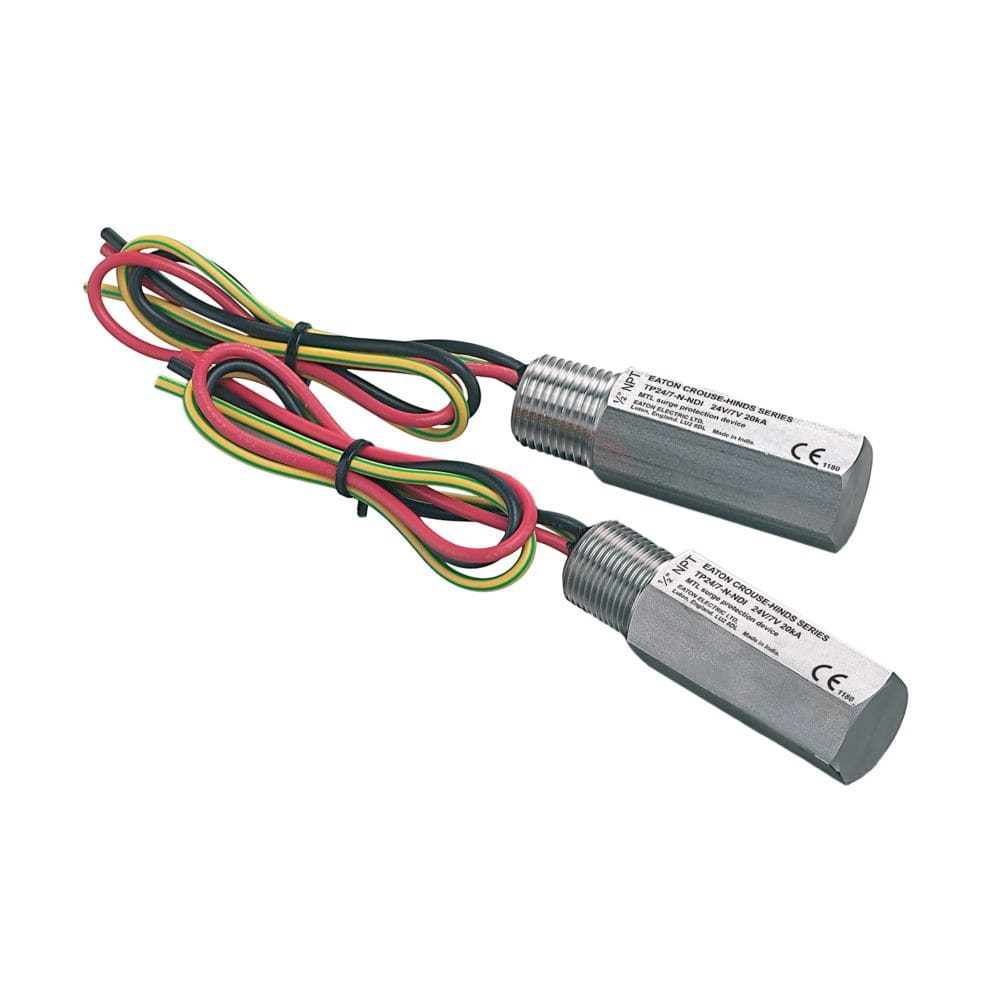

Eaton Crouse-Hinds series MTL TP24/7 surge protector, 24 Vac, 7 Vdc, 3kA surge current, 316 stainless steel, <36V/<12V voltage protection level, 4 flying leads, 18 AWG, 1/2" NPT, Certified
- Specifically designed for Multivariable Transmitters and Level Transmitters
- Four wires protected, one pair at 12V to 24V and one pair at 7V (e.g. RS485)
- Easy and direct mounting - simply screws into spare conduit entry
- Intrinsically safe and flameproof to CENELEC standards
- FM, CSA and ATEX approved
