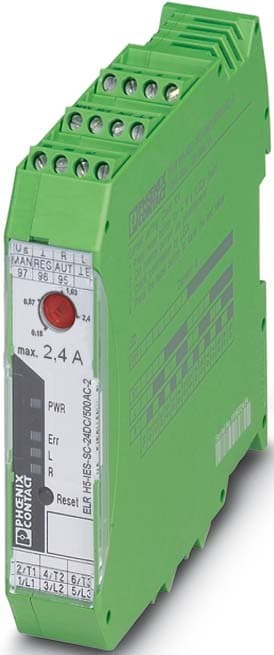

Phoenix Contact - ELR H5-IES-SC- 24DC/500AC-2 - 2900414
/ each
£156.46
Delivery
Essential specifications
Kind of motor starter - Reversing starter
Rated control supply voltage Us at DC - 24...24 V
With short-circuit release - no
Voltage type for actuating - DC
Rated operation current Ie - 2.4 A
Packaging
1 each
GTIN
4046356504058
Supplier Ref
2900414
Manufacturer Ref
2900414
Commercial Reference
2900414
Kind of motor starter:
Reversing starter
Rated control supply voltage Us at DC:
24...24 V
With short-circuit release:
no
Voltage type for actuating:
DC
Rated operation current Ie:
2.4 A
Setting range overload protector:
0...2.4 A
Connection type main current circuit:
Screw connection
IP-rating:
IP20
Hybrid motor starter for reversing 3~ AC motors up to 500 V AC and 2.4 A output current, with 24 V DC control voltage, adjustable overload shutdown and emergency stop function to SIL 3 / PL e and screw connection
- 22.5 mm wide
- Low-wear switching
- Space saving
- Reduction in wiring
- Long service life
- 3-phase loop bridges
- Adjustable current for bimetal function
