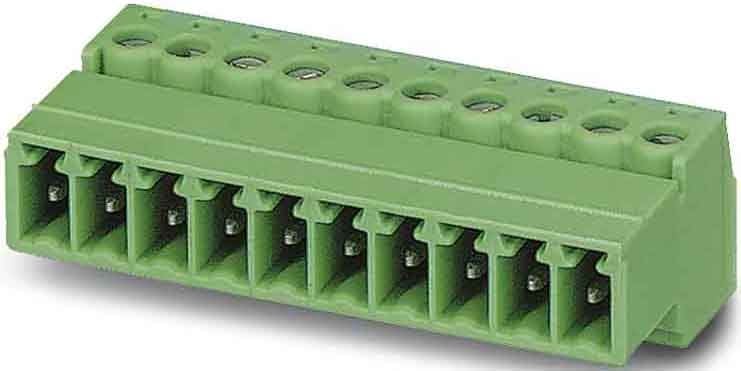

Phoenix Contact - IMC 1,5/10-ST-3,81 - 1857964

Type of connection:

Printed circuit board to cable

Number of poles:

10

Modular spacing contacts:

3.81 mm

Rated current In:

8 A

Housing colour:

Green

Contact type:

Pin

Number of plug-in contact rows:

1

Modular spacing connections:

3.81 mm

Angle contact/conductor connection:

180° (horizontal)

Rated voltage:

160 V

Rated surge voltage:

2.5 kV

Over voltage category:

III

Pollution degree:

2

Connectable conductor cross section fine-strand without cable end sleeve:

0.14...1.5 mm²

Connectable conductor cross section fine-strand with cable end sleeve:

0.25...1.5 mm²

Connectable conductor cross section solid-core:

0.14...1.5 mm²

Connectable conductor cross section multi-wired:

0.14...1.5 mm²

Type of electric plug connection:

Screw connection

Connectable cable type:

Other

Material of contact surface:

Tin

Material insulation body:

Thermoplastic

Material housing:

Plastic

With protective conductor:

no
