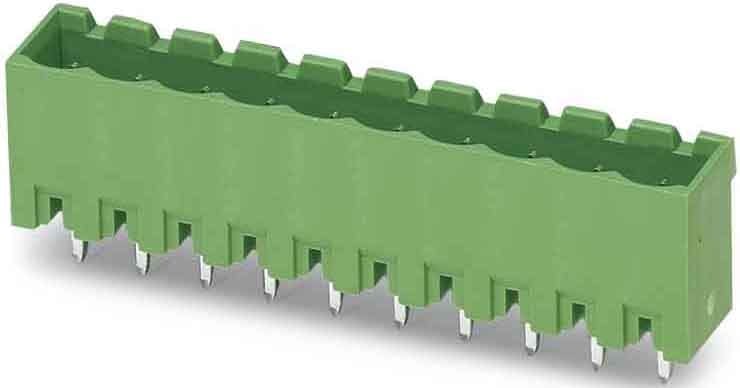

Phoenix Contact - MSTBVA 2,5/12-G-5,08 - 1755833

Type of connection:

Printed circuit board to cable

Contact type:

Socket (Female)

Number of poles:

12

Modular spacing contacts:

5.08 mm

Rated current In:

12 A

Connector model:

Fixed connector

Number of plug-in contact rows:

1

Modular spacing connections:

5.08 mm

Angle PCB/contact:

0°/180° (horizontal)

Rated voltage:

320 V

Rated surge voltage:

4 kV

Over voltage category:

III

Pollution degree:

2

Material of contact surface:

Other

Type of electric plug connection:

Soldering connection

Diameter connection pin:

1 mm

Length pin:

3.9 mm

Material insulation body:

Thermoplastic

Housing colour:

Green

Type of PCB fastening:

Other

Type of fastening:

Solder
