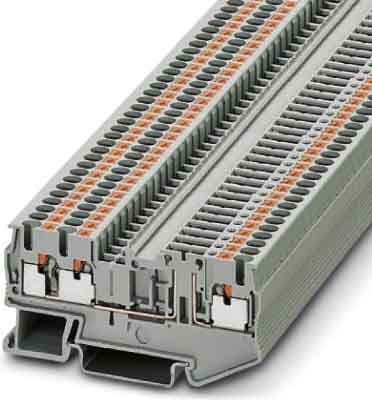

Phoenix Contact - PIT 2,5-TWIN-TG - 3210198
/ 50 each
£2.19
Delivery
Essential specifications
Connectable conductor cross section fine-strand without cable end sleeve - 0.14...2.5 mm²
Rated current In - 20 A
Type of electrical connection 1 - Plug clamp connection
Number of clamp positions per level - 3
Connectable conductor cross section fine-strand with cable end sleeve - 0.14...2.5 mm²
Packaging
1 each
GTIN
4046356333573
Supplier Ref
3210198
Manufacturer Ref
3210198
Commercial Reference
3210198
Connectable conductor cross section fine-strand without cable end sleeve:
0.14...2.5 mm²
Rated current In:
20 A
Type of electrical connection 1:
Plug clamp connection
Number of clamp positions per level:
3
Connectable conductor cross section fine-strand with cable end sleeve:
0.14...2.5 mm²
Connectable conductor cross section solid-core:
0.14...4 mm²
Connectable conductor cross section multi-wired:
0.14...2.5 mm²
Rated voltage:
400 V
Type of electrical connection 2:
Plug clamp connection
Number of levels:
1
Internally connected levels:
no
Mounting method:
DIN rail (top hat rail) 35 mm
Material insulation body:
Thermoplastic
Width:
5.2 mm
Depth:
74 mm
End plate required:
yes
Colour:
Grey
With integrated test socket:
no
Disconnect terminal block, Connection type: Push-in connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Nominal current: 20 A, Nominal voltage: 400 V, Length: 74 mm, Width: 5.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
