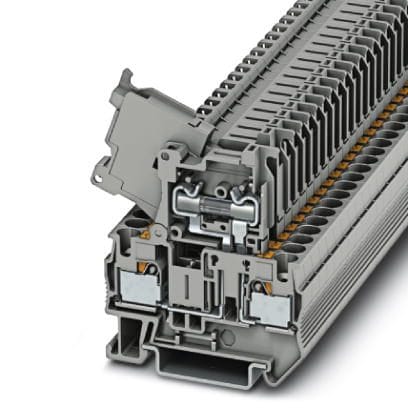

Phoenix Contact - PT 4-HESI (5X20) GY/GY - 1058940
/ 50 pieces
£6.14
Delivery
Essential specifications
Type of fuse insert - Other
Connectable conductor cross section fine-strand without cable end sleeve - 0.25...4 mm²
Type of electrical connection 1 - Plug-in connection
Number of levels - 1
Connectable conductor cross section fine-strand with cable end sleeve - 0.25...4 mm²
Packaging
1 piece
GTIN
4055626702353
Supplier Ref
1058940
Manufacturer Ref
1058940
Commercial Reference
1058940
Type of fuse insert:
Other
Connectable conductor cross section fine-strand without cable end sleeve:
0.25...4 mm²
Type of electrical connection 1:
Plug-in connection
Number of levels:
1
Connectable conductor cross section fine-strand with cable end sleeve:
0.25...4 mm²
Connectable conductor cross section solid-core:
0.2...6 mm²
Rated current In:
6.3 A
Rated voltage:
500 V
Type of electrical connection 2:
Plug-in connection
Material insulation body:
Ceramics
Width:
6.2 mm
Depth:
56 mm
Colour:
Grey
Fuse modular terminal block, fuse type: Glass / ceramics / ..., connection method: Push-in connection, cross section: 0.2 mm²- 6 mm², AWG: 24 - 10, nominal current: 6.3 A, nom. voltage: 500 V, width: 6.2 mm, fuse type: G / 5 x 20, mounting type: NS 35/7,5, NS 35/15, color: gray
