Phoenix Contact - PT 4-MT - 3211933
/ 50 each
£3.42
Delivery
Essential specifications
Rated current In - 20 A
Type of electrical connection 1 - Other
Number of clamp positions per level - 2
Type of slitting - Swivelling
Connectable conductor cross section solid-core - 0.2...6 mm²
Packaging
1 each
GTIN
Supplier Ref
3211933
Manufacturer Ref
3211933
Commercial Reference
3211933
Rated current In:
20 A
Type of electrical connection 1:
Other
Number of clamp positions per level:
2
Type of slitting:
Swivelling
Connectable conductor cross section solid-core:
0.2...6 mm²
Rated voltage:
400 V
Type of electrical connection 2:
Plug clamp connection
Number of levels:
1
Internally connected levels:
no
Mounting method:
DIN rail (top hat rail) 35 mm
Material insulation body:
Thermoplastic
Width:
6.2 mm
Depth:
56 mm
End plate required:
yes
Colour:
Grey
Type of cross disconnection:
None
With integrated test socket:
yes

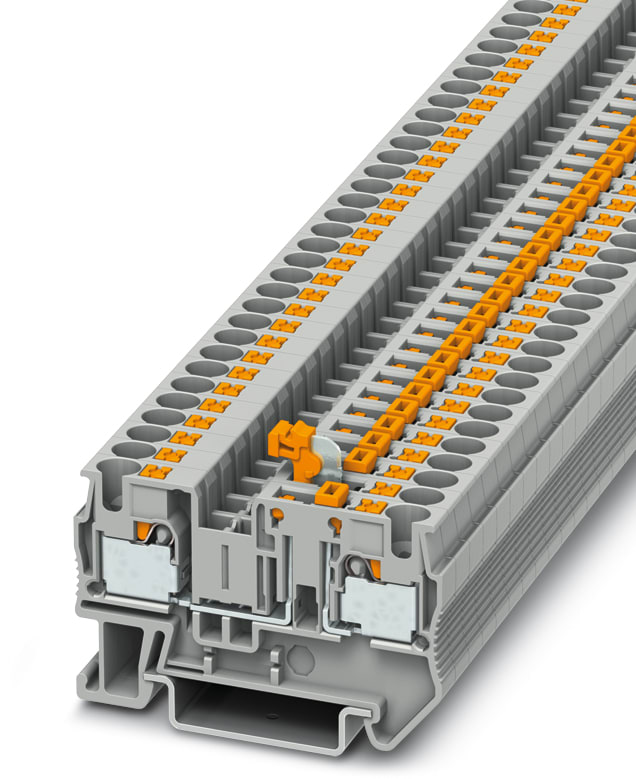

Knife disconnect terminal block, Connection type: Push-in connection, Cross section: 0.2 mm² - 6 mm², AWG: 24 - 10, Nominal current: 20 A, Nominal voltage: 400 V, Length: 56 mm, Width: 6.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
