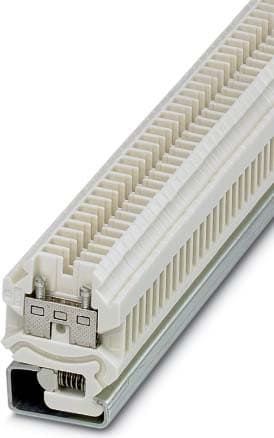

Phoenix Contact - SSK 0525 KER-EX - 0501059

Connectable conductor cross section fine-strand without cable end sleeve:

0.2...4 mm²

Rated current In:

24 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Connectable conductor cross section fine-strand with cable end sleeve:

0.25...2.5 mm²

Connectable conductor cross section solid-core:

0.2...4 mm²

Connectable conductor cross section multi-wired:

0.2...4 mm²

Rated voltage:

690 V

Type of electrical connection 2:

Screw connection

Number of levels:

1

Material insulation body:

Ceramics

Width:

6.2 mm

Depth:

38 mm

Explosion-tested version 'Ex e':

yes

End plate required:

yes

Colour:

White

Internally connected levels:

no
