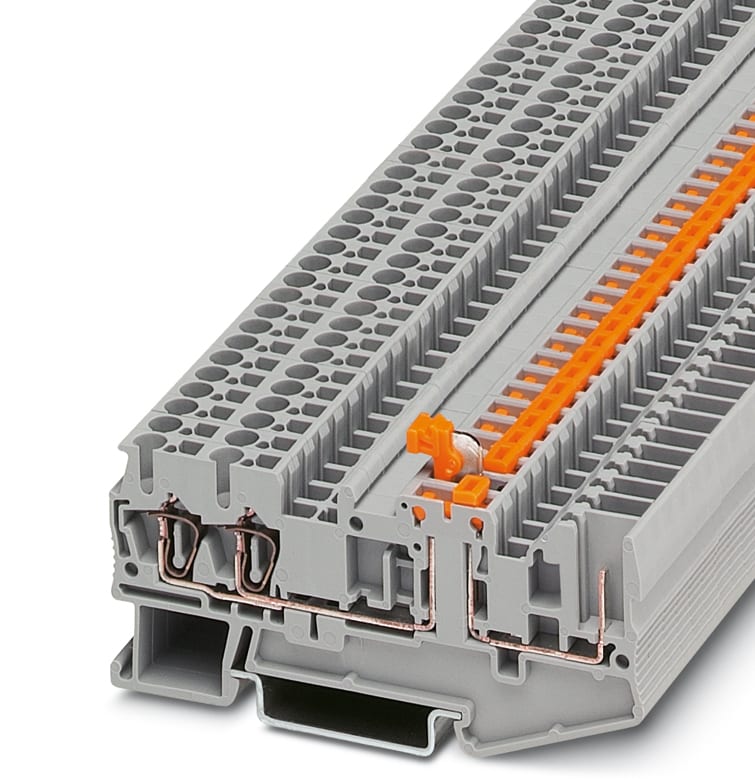

Phoenix Contact - ST 2,5-TWIN-MT/1P - 3040766
/ 50 each
£3.01
Delivery
Essential specifications
Rated current In - 16 A
Type of electrical connection 1 - Spring clamp connection
Number of clamp positions per level - 3
Rated voltage - 500 V
Type of electrical connection 2 - Plug-in connection
Packaging
1 each
GTIN
Supplier Ref
3040766
Manufacturer Ref
3040766
Commercial Reference
3040766
Rated current In:
16 A
Type of electrical connection 1:
Spring clamp connection
Number of clamp positions per level:
3
Rated voltage:
500 V
Type of electrical connection 2:
Plug-in connection
Number of levels:
1
Internally connected levels:
no
Mounting method:
DIN rail (top hat rail) 35 mm
Width:
5.2 mm
End plate required:
yes
Colour:
Grey
Knife disconnect terminal block, Connection type: Spring-cage/plug-in connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Nominal current: 20 A, Nominal voltage: 400 V, Length: 81 mm, Width: 5.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
