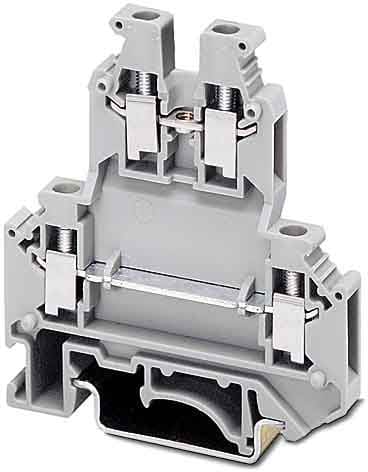

Phoenix Contact - UKK 3 - 2770011

Connectable conductor cross section fine-strand without cable end sleeve:

0.2...2.5 mm²

Rated current In:

24 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

0.25...2.5 mm²

Connectable conductor cross section solid-core:

0.2...2.5 mm²

Connectable conductor cross section multi-wired:

0.2...2.5 mm²

Rated voltage:

500 V

Type of electrical connection 2:

Screw connection

Number of levels:

2

Material insulation body:

Thermoplastic

Width:

5.2 mm

Depth:

56 mm

Explosion-tested version 'Ex e':

no

End plate required:

yes

Colour:

Grey

Internally connected levels:

no
