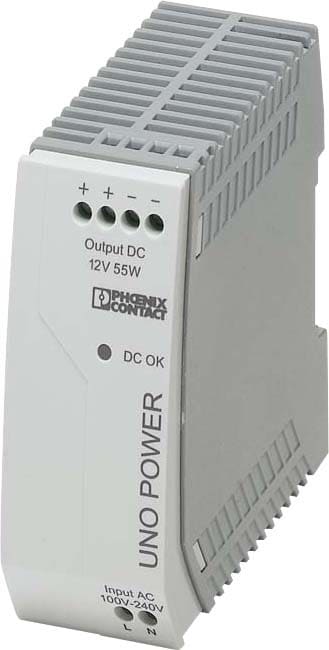

Phoenix Contact - UNO-PS/1AC/12DC/ 55W - 2902999

Voltage type of supply voltage:

AC

1st secondary output voltage:

12...12 V

Max. output current 1:

4.6 A

Secondary voltage adjustable:

no

Short-circuit-proof:

yes

Rated supply voltage at AC 50 Hz:

85...264 V

Rated supply voltage at AC 60 Hz:

85...264 V

Output voltage stabilized:

yes

Power consumption:

0.6 VA

Power output:

55 W

Stabilized:

yes

Type of electric plug connection:

Screw connection

Rail mounting possible:

yes

Suitable for wall mounting:

no

Suitable for DIN installation panels:

no

Width in number of modular spacings:

1.9

Aperture height:

90 mm

Direct mounting possible:

no

Width:

35 mm

Height:

90 mm

Depth:

84 mm

Suitable for safety functions:

yes

IP-rating:

IP20
