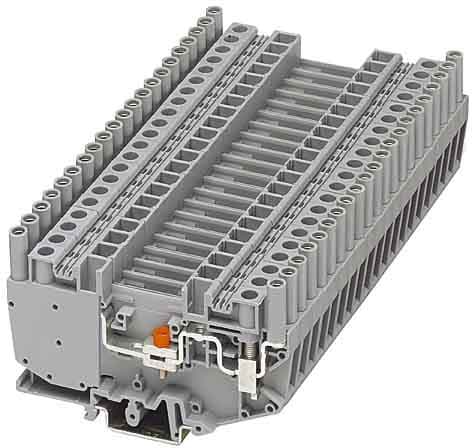

Phoenix Contact - URTK/SP - 0311126

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...6 mm²

Rated current In:

50 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Type of slitting:

Sliding

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...6 mm²

Connectable conductor cross section solid-core:

0.5...10 mm²

Connectable conductor cross section multi-wired:

0.5...6 mm²

Rated voltage:

500 V

Type of electrical connection 2:

Screw connection

Number of levels:

1

Internally connected levels:

no

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Operation temperature:

-40...120 °C

Width:

8.2 mm

Depth:

99.5 mm

End plate required:

yes

Colour:

Grey

Type of cross disconnection:

None

With integrated test socket:

yes
