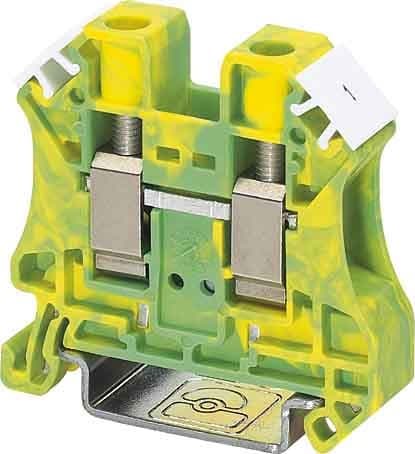

Phoenix Contact - UT 10-PE - 3044173

PEN function possible:

no

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...16 mm²

Type of electrical connection 1:

Screw connection

Number of levels:

1

Number of clamp positions per level:

2

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...10 mm²

Connectable conductor cross section solid-core:

0.5...16 mm²

Connectable conductor cross section multi-wired:

0.5...16 mm²

Type of electrical connection 2:

Screw connection

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Width:

10.2 mm

Depth:

47.7 mm

End plate required:

yes

Colour:

Green/yellow
