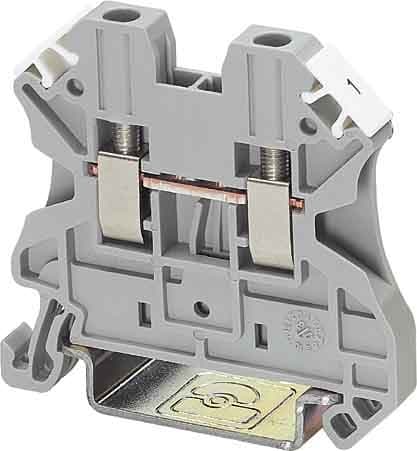

Phoenix Contact - UT 16 - 3044199
/ 50 each
£2.12
Delivery
Essential specifications
Connectable conductor cross section fine-strand without cable end sleeve - 1.5...25 mm²
Rated current In - 76 A
Type of electrical connection 1 - Screw connection
Number of clamp positions per level - 2
Mounting method - DIN rail (top hat rail) 35 mm
Packaging
1 each
GTIN
4017918977535
Supplier Ref
3044199
Manufacturer Ref
3044199
Commercial Reference
3044199
Connectable conductor cross section fine-strand without cable end sleeve:
1.5...25 mm²
Rated current In:
76 A
Type of electrical connection 1:
Screw connection
Number of clamp positions per level:
2
Mounting method:
DIN rail (top hat rail) 35 mm
Connectable conductor cross section fine-strand with cable end sleeve:
1...16 mm²
Connectable conductor cross section solid-core:
1.5...25 mm²
Connectable conductor cross section multi-wired:
1.5...25 mm²
Rated voltage:
1000 V
Type of electrical connection 2:
Screw connection
Number of levels:
1
Material insulation body:
Thermoplastic
Width:
12.2 mm
Depth:
55.5 mm
Explosion-tested version 'Ex e':
yes
End plate required:
yes
Colour:
Grey
Internally connected levels:
no
Feed-through terminal block, Connection method: Screw connection, Cross section: 1.5 mm² - 25 mm², AWG: 16 - 4, Width: 12.2 mm, Height: 54.4 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
- The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
- As well as saving space, the compact design enables user-friendly wiring in a small amount of space
- Optimum screwdriver guidance through closed screw shafts
- Tested for railway applications
- The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
