TE Connectivity - 3 - PHASE CURRENT TRANSFORMER - M3N1-25-60/5
£33.70
/ each
£33.70
1
Delivery
Number of available items for delivery:0
Essential specifications
Model - 3-phase current converter set
Primary rated current - 60 A
Secondary rated current - 5 A
Secondary rated apparent power - 2.5 VA
Opening diameter - 25 mm
Packaging
1 each
GTIN
Supplier Ref
M3N1-25-60/5
Manufacturer Ref
M3N1-25-60/5
Commercial Reference
M3N1-25-60/5
Model:
3-phase current converter set
Primary rated current:
60 A
Secondary rated current:
5 A
Secondary rated apparent power:
2.5 VA
Opening diameter:
25 mm
Secondary connection:
Screw connection
Number of primary inputs:
3

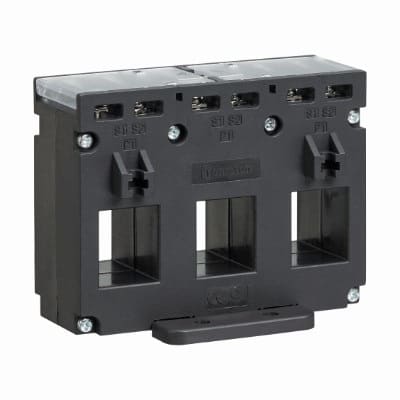

3-in-1 Current Transformer. Ratio 60/5. Aperture 3 @ 15x25mm. Case size: 75mm wide x 60mm deep x 80mm high
- Cost effective three-phase moulded case
- Ratio's ranging from 60/5 to 630/5
- Integrated wire sealable terminal cover
- Busbar, DIN-rail and metal feet mounting hardware supplied
- Combined M4 posi/slot screw
- Isolated output for safety
- Faster installation
- Compact size
- Ex-stock delivery
