TE Connectivity - CURRENT TRANSFORMER 1000-5A - MR-85-1000/5A
£24.70
/ each
£24.70
1
Delivery
Number of available items for delivery:0
Essential specifications
Model - Single-phase current converter
Primary rated current - 1000 A
Secondary rated current - 5 A
Secondary rated apparent power - 30 VA
Opening diameter - 85 mm
Packaging
1 each
GTIN
Supplier Ref
MR-85-1000/5A
Manufacturer Ref
MR-85-1000/5A
Commercial Reference
MR-85-1000/5A
Model:
Single-phase current converter
Primary rated current:
1000 A
Secondary rated current:
5 A
Secondary rated apparent power:
30 VA
Opening diameter:
85 mm
Secondary connection:
Screw connection
Number of primary inputs:
1

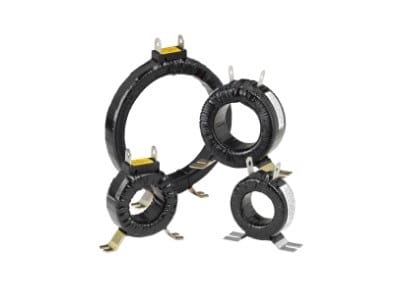

Ring Current transformer. 1000/5A. Class 3 - 30VA. Class 1 - 15VA. Inside Diameter 85mm. Outside Diameter 120mm.
- MR transformers accurately measure high primary currents, converting the primary current into a proportional 5 Amp secondary current.
