TE Connectivity - DIGITAL METER - TL1-01
/ each
£240.00
Delivery
Essential specifications
Ammeter - yes
Blind power meter - no
Frequency meter - yes
Voltmeter - yes
Effective power measurement device - no
Packaging
1 each
GTIN
Supplier Ref
TL1-01
Manufacturer Ref
TL1-01
Commercial Reference
TL1-01
Ammeter:
yes
Blind power meter:
no
Frequency meter:
yes
Voltmeter:
yes
Effective power measurement device:
no
Rotational speed meter:
no
Voltage type of supply voltage:
AC
Supporting protocol for MODBUS:
yes
Width:
71.3 mm
Height:
90.2 mm
Depth:
62 mm

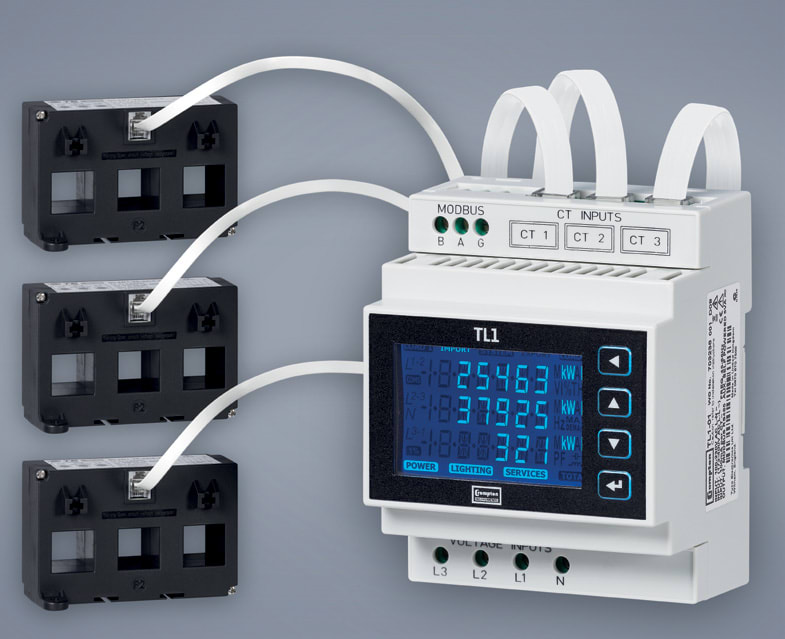

Integra TL1 Tri Load Digital Metering System. Single meter for 3x three phase loads. Multiple display modes. Modbus RTU RS485 as standard. User-programmable CT ratio and system configuration. True rms measurement. RJ12 socket for fast connection. DIN-rail enclosure.
- DIN-rail enclosure
- Single meter for 3x three phase loads
- Multiple display modes
- Modbus RTU RS485 as standard
- User-programmable CT ratio and system configuration
- True rms measurement
- Continuous busbar or individual busbar metering
- Can be programmed for individual power loads when required
- RJ12 socket for fast connection
- Optional DIN 96mm panel mounting bezel can be supplied
