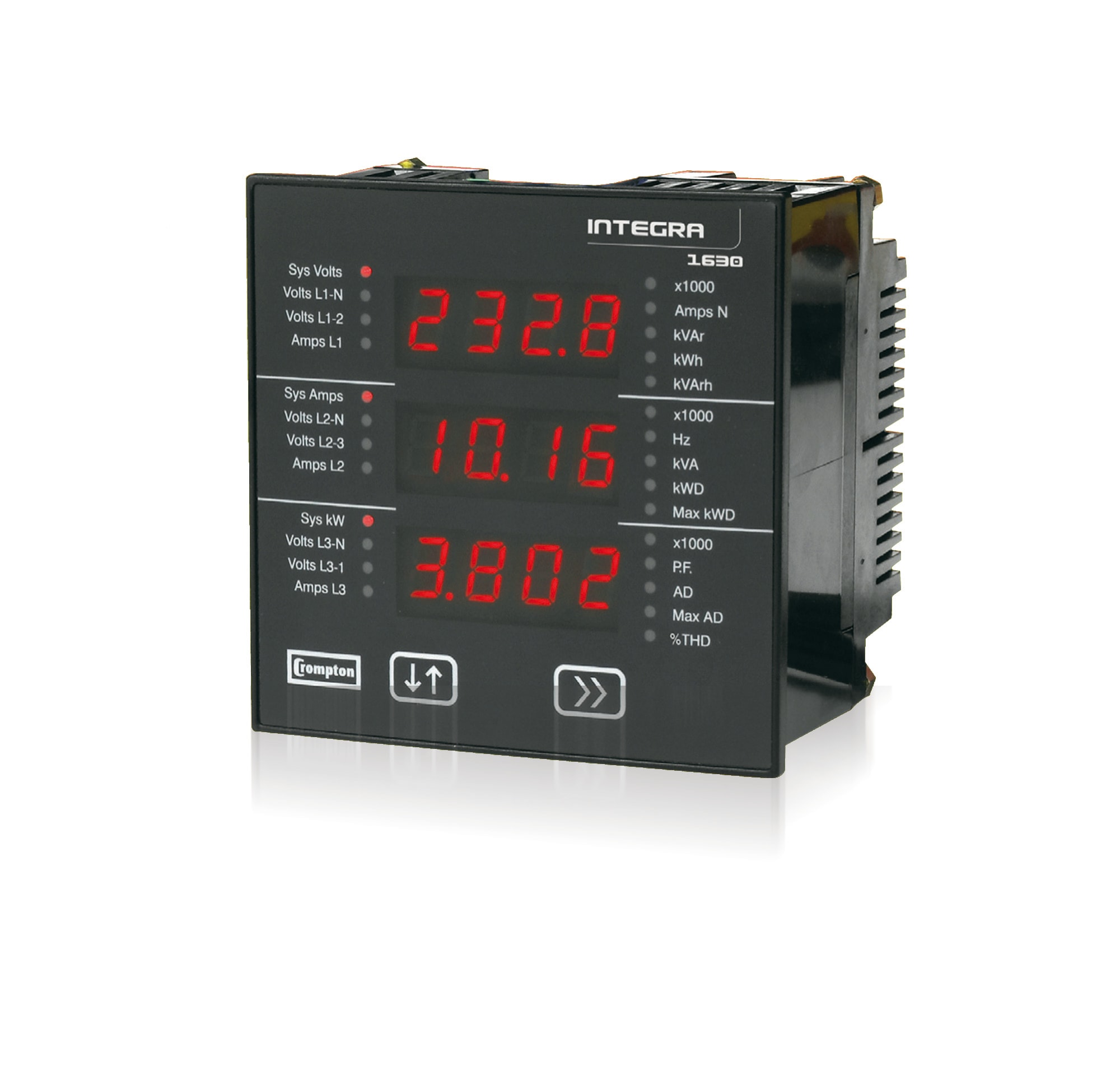

TE Connectivity - INTEGRA 1630 DIGITAL METERING SYS MODUS - INT-1630-M-5-M-010

Integra 1630 low profile DMS. LED display, DIN 96mm panel mounted. user selectable system configuration. Input. 241-480V L-L 3~ 140-277V L-N 3~Input. 5A Ct operated 3~ 45-66Hz. Auxiliary. 100-250V AC/DC. Output 1 Modbus.

• Low profile

• High contrast LED display

• LED annunciators for each measured parameter

• User programmable system configuration (4-wire default)

• Fully programmable VT and CT ratios

• Current demand per phase

• Elapsed time counter for connected loads

• Removable bezel for very low profile applications

• True rms measurement

• High accuracy <0.2% on some measurements

• Configurable via software package or menu-driven interface

• Import and export monitoring

• LED display

• 0.2% accuracy

• LED annunciators for each measured parameter

• User programmable system configuration (4-wire default)

• Fully programmable VT and CT ratios

• Current demand per phase

• Elapsed time counter for connected loads
