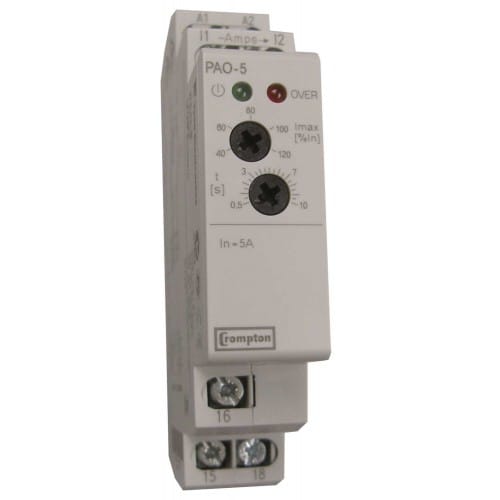

TE Connectivity - PROTECTOR SINGLE PHASE OVER CURRENT - PAO-5

Supply voltage AC 50 Hz:

24...240 V

Supply voltage DC:

24...24 V

Single-phase under current possible:

yes

Single-phase over current possible:

yes

Type of electric plug connection:

Screw connection

Voltage type of supply voltage:

AC/DC

Current measurement range:

5...5 A

Three-phase under current possible:

no

Three-phase over current possible:

no

Number of contacts as change-over contact:

1

Width:

17.6 mm

Height:

90 mm

Depth:

64 mm
