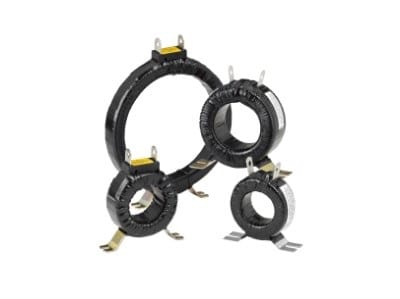

TE Connectivity - TAPE WOUND CURRENT TRANSFORMER 2000/5A - MR-125-2000/5A
£37.70
/ each
£37.70
1
Delivery
Number of available items for delivery:0
Essential specifications
Model - Single-phase current converter
Primary rated current - 2000 A
Secondary rated current - 5 A
Secondary rated apparent power - 30 VA
Opening diameter - 125 mm
Packaging
1 each
GTIN
Supplier Ref
MR-125-2000/5A
Manufacturer Ref
MR-125-2000/5A
Commercial Reference
MR-125-2000/5A
Model:
Single-phase current converter
Primary rated current:
2000 A
Secondary rated current:
5 A
Secondary rated apparent power:
30 VA
Opening diameter:
125 mm
Secondary connection:
Screw connection
Number of primary inputs:
1
Ring Current transformer. 2000/5A. Class 3 - 30VA. Class 1 - 20VA. Inside Diameter 125mm. Outside Diameter 165mm.
- MR transformers accurately measure high primary currents, converting the primary current into a proportional 5 Amp secondary current.
TE Connectivity
Explore more products in this series
