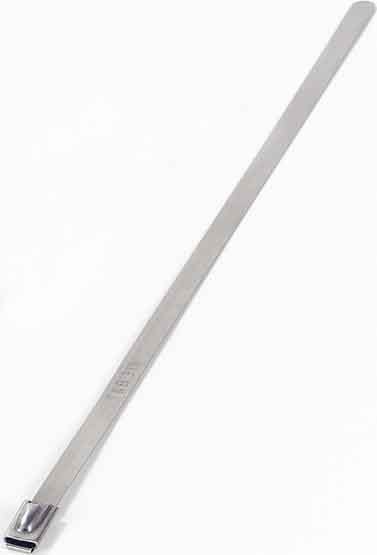

Thomas and Betts - 304 STAINLESS STEEL TIE 4.6X200MM - YLS4.6200A
/ 100 each
£0.9623
Delivery
Essential specifications
Band width - 4.6 mm
Length belt/tape/tie - 200 mm
Tie thickness - 0.26 mm
Min. tensile strength - 440 N
Operation temperature - -80...300 °C
Packaging
1 each
GTIN
5414363073895
Supplier Ref
YLS4.6200A
Manufacturer Ref
YLS4.6200A
Commercial Reference
YLS4.6200A
Band width:
4.6 mm
Length belt/tape/tie:
200 mm
Tie thickness:
0.26 mm
Min. tensile strength:
440 N
Operation temperature:
-80...300 °C
Model:
Internal toothing
Band closure:
Ball latch
Material:
Metal
Material quality:
Stainless steel V2A
Surface treatment:
Untreated
UV-stable acc. ASTM D6779:
no
Halogen free:
yes
Colour:
Stainless steel
Transparent:
no
Reflective (fluorescent):
no
Text strip:
None
Solvable fastener:
no
Type of fastening:
None
VG approval:
no
MIL approval:
no
UL approval:
yes
Ball-Lock 304 Stainless Steel Cable Tie, Uncoated, for Temperatures up to 300 Degrees Celsius (572 F) for Indoor and Outdoor Applications, Suitable for High Temperature Environments, UL/EN/CSA62275 Type 2S Rated for AH-1 Plenum, Length of 200mm (7.87 Inches), Width of 4.6mm (0.18 Inches), Thickness of 0.26mm (0.01 Inches), Tensile Strength Rating of 440 Newtons (100 pounds)
- Ty-Met Stainless Steel Cable Tie.
