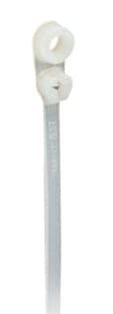

Thomas and Betts - SPECIALITY 2PC TIE-MOUNTING HEAD IV - TY1435M
/ 1000 each
£0.3405
Delivery
Essential specifications
Band width - 4.57 mm
Length belt/tape/tie - 198.42 mm
Tie thickness - 1.4 mm
Min. tensile strength - 220 N
Operation temperature - -40...85 °C
Packaging
1 each
GTIN
5414363060710
Supplier Ref
TY1435M
Manufacturer Ref
TY1435M
Commercial Reference
TY1435M
Band width:
4.57 mm
Length belt/tape/tie:
198.42 mm
Tie thickness:
1.4 mm
Min. tensile strength:
220 N
Operation temperature:
-40...85 °C
Model:
Internal toothing
Band closure:
Steel nose
Material:
Plastic
Material quality:
Polyamide (PA)
Surface treatment:
Untreated
UV-stable acc. ASTM D6779:
no
Halogen free:
yes
Transparent:
no
Reflective (fluorescent):
no
Text strip:
None
Solvable fastener:
no
Type of fastening:
Screw hole
VG approval:
no
MIL approval:
no
UL approval:
yes
Integrated Mounting Hole Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 198.42mm (7.812 Inches), Width of 4.57mm (0.18 Inches), Thickness of 1.40mm (0.055 Inches), Tensile Strength Rating of 220 Newtons (50 Pounds), 1/4 Inch Screw for Mounting
- The integrally formed nylon pawl combines low insertion and high locking strength.
Thomas and Betts
Explore more products in this series
