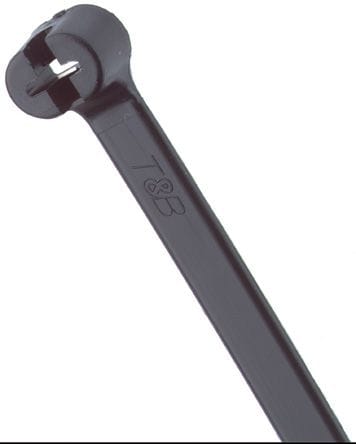

Thomas and Betts - TY-RAP UV STABILISED BLACK POLYAMIDE - TY232MX

/ 1000 each
£0.1015
Delivery
Essential specifications
Band width - 2.54 mm
Length belt/tape/tie - 203.2 mm
Tie thickness - 1.1 mm
Min. tensile strength - 80 N
Operation temperature - -40...85 °C
Packaging
1 each
GTIN
5414363061540
Supplier Ref
TY232MX
Manufacturer Ref
TY232MX
Commercial Reference
TY232MX
Band width:
2.54 mm
Length belt/tape/tie:
203.2 mm
Tie thickness:
1.1 mm
Min. tensile strength:
80 N
Operation temperature:
-40...85 °C
Model:
Internal toothing
Band closure:
Steel nose
Material:
Plastic
Material quality:
Polyamide (PA)
Surface treatment:
Untreated
UV-stable acc. ASTM D6779:
no
Halogen free:
yes
Colour:
Black
Transparent:
no
Reflective (fluorescent):
no
Text strip:
None
Solvable fastener:
no
Type of fastening:
None
VG approval:
no
MIL approval:
no
UL approval:
yes
Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (220 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 203.2mm (8.0 Inches), Width of 2.54mm (0.10 Inches), Thickness of 1.10mm (0.05 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds), Bulk Pack
- Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
- Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
- The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
- Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
Thomas and Betts
