Thomas and Betts - TY-RAP UV STABILISED BLACK POLYAMIDE - TY5232MXR

CopyCopy

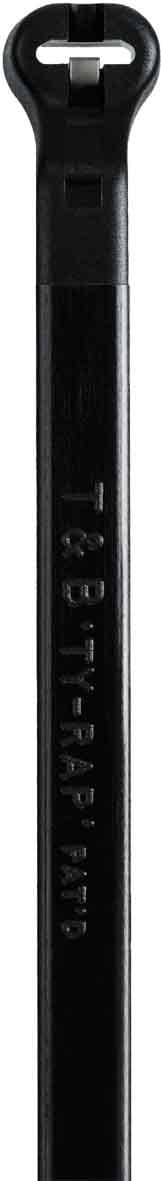

Thomas and Betts - TY-RAP UV STABILISED BLACK POLYAMIDE
£11.25

/ 100 each

£0.1125

100

Delivery

Number of available items for delivery:0

Essential specifications

  • Band width - 2.54 mm

  • Length belt/tape/tie - 203.2 mm

  • Tie thickness - 1.1 mm

  • Min. tensile strength - 80 N

  • Operation temperature - -40...105 °C

Packaging

  • 1 each

GTIN

5414363065319

Supplier Ref

TY5232MXR

Manufacturer Ref

TY5232MXR

Commercial Reference

TY5232MXR

Band width:

2.54 mm

Length belt/tape/tie:

203.2 mm

Tie thickness:

1.1 mm

Min. tensile strength:

80 N

Operation temperature:

-40...105 °C

Model:

Internal toothing

Band closure:

Steel nose

Material:

Plastic

Material quality:

Polyamide (PA)

Surface treatment:

Untreated

UV-stable acc. ASTM D6779:

no

Halogen free:

yes

Colour:

Black

Transparent:

no

Reflective (fluorescent):

no

Text strip:

None

Solvable fastener:

no

Type of fastening:

None

VG approval:

no

MIL approval:

no

UL approval:

no

Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (220 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 203.2mm (8.0 Inches), Width of 2.54mm (0.10 Inches), Thickness of 1.10mm (0.043 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds), Euroslot Packaging


  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
  • Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
  • The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
  • Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.

Thomas and Betts
