Thomas and Betts - TYRAP STANDARD, NATURAL 338 X 7.6 - TY27M

CopyCopy

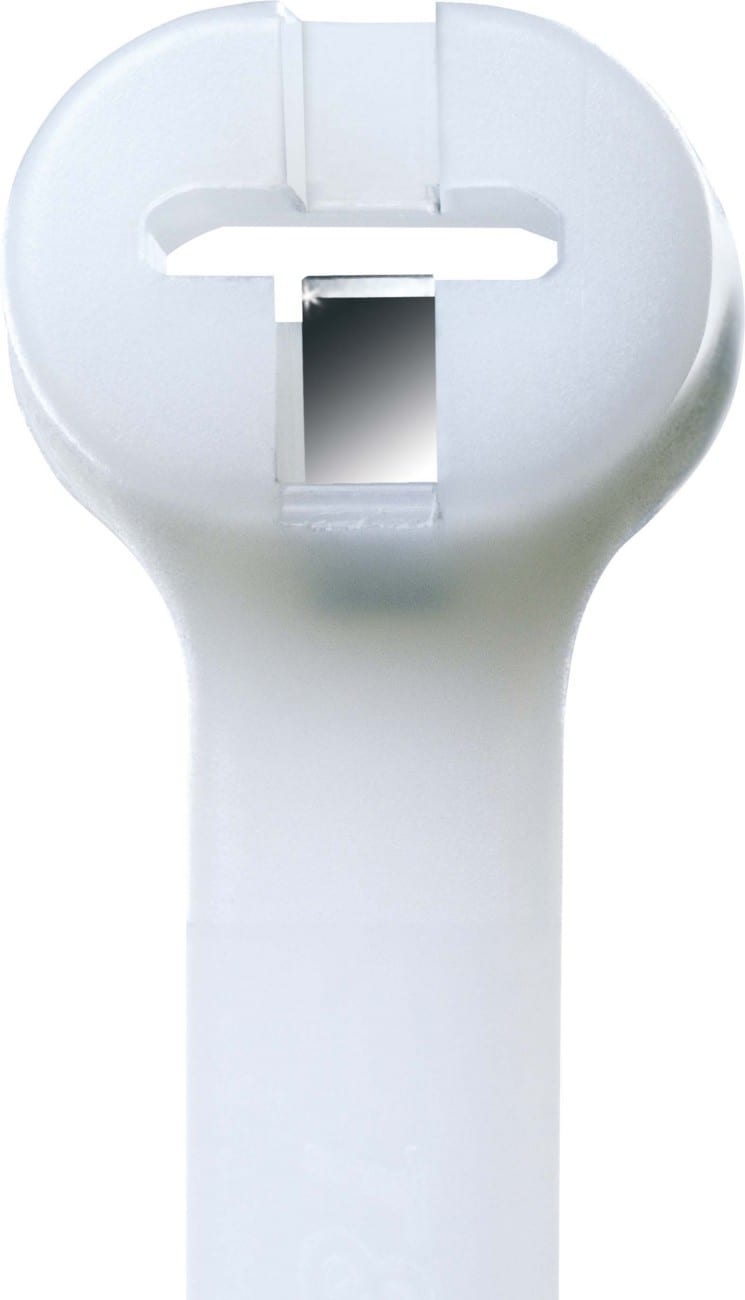

Thomas and Betts - TYRAP STANDARD, NATURAL 338 X 7.6
£226.75

/ 500 each

£0.4535

500

Delivery

Number of available items for delivery:0

Essential specifications

  • Band width - 7 mm

  • Length belt/tape/tie - 340 mm

  • Tie thickness - 1.65 mm

  • Min. tensile strength - 530 N

  • Operation temperature - -40...85 °C

Packaging

  • 1 each

GTIN

5414363063247

Supplier Ref

TY27M

Manufacturer Ref

TY27M

Commercial Reference

TY27M

Band width:

7 mm

Length belt/tape/tie:

340 mm

Tie thickness:

1.65 mm

Min. tensile strength:

530 N

Operation temperature:

-40...85 °C

Model:

Internal toothing

Band closure:

Steel nose

Material:

Plastic

Material quality:

Polyamide (PA)

Surface treatment:

Untreated

UV-stable acc. ASTM D6779:

no

Halogen free:

yes

Transparent:

no

Reflective (fluorescent):

no

Text strip:

None

Solvable fastener:

no

Type of fastening:

None

VG approval:

no

MIL approval:

yes

UL approval:

yes

High Performance Cable Tie for Indoor Applications, Natural Color Nylon 6.6, Length of 340mm (13.4 Inches) for Bundle Diameter up to 102mm (4 Inches), Width of 6.9mm (0.271 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F), UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Bulk Pack


  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
  • Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
  • The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
  • Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
