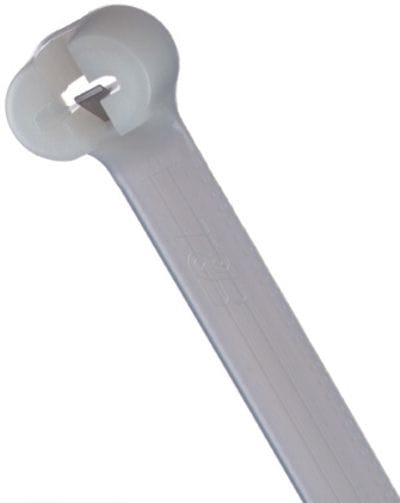

Thomas and Betts - TYRAP STANDARD, NATURAL UV RESIS. - TY25MFR
/ 1000 each
£0.4326
Delivery
Essential specifications
Band width - 4.57 mm
Length belt/tape/tie - 185.67 mm
Tie thickness - 1.33 mm
Min. tensile strength - 222 N
Operation temperature - -20...65 °C
Packaging
1 each
GTIN
Supplier Ref
TY25MFR
Manufacturer Ref
TY25MFR
Commercial Reference
TY25MFR
Band width:
4.57 mm
Length belt/tape/tie:
185.67 mm
Tie thickness:
1.33 mm
Min. tensile strength:
222 N
Operation temperature:
-20...65 °C
Model:
Internal toothing
Band closure:
Steel nose
Material:
Plastic
Material quality:
Polyamide flame retardant
Surface treatment:
Untreated
UV-stable acc. ASTM D6779:
no
Halogen free:
yes
Transparent:
no
Reflective (fluorescent):
no
Text strip:
None
Solvable fastener:
no
Type of fastening:
None
VG approval:
no
MIL approval:
no
UL approval:
yes
Cable Tie, Flame Retardant White Nylon 6.6, Temperature Range of -20 to 65 Degrees Celsius (-4 to 149 F) for Indoor Applications, Length of 185.67mm (7.31 Inches), Width of 4.57mm (0.18 Inch), Thickness of 0.77mm (0.30 Inch), Maximum Bundle Diameter 44.4mm (1.75 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds)
- Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
- Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
- The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
- Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
Thomas and Betts
