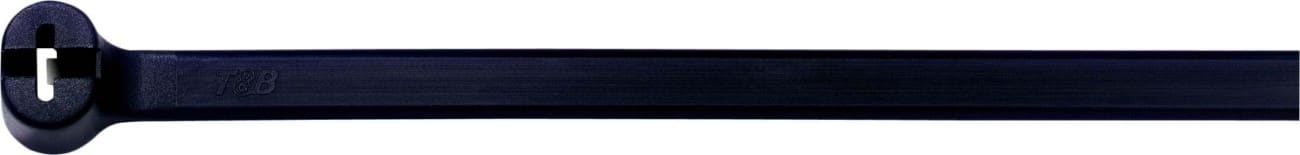

Thomas and Betts - TYRAPS (BLACK) - TYP28MX

CopyCopy
£348.80

/ 1000 each

£0.3488

1000

Delivery

Number of available items for delivery:0

Essential specifications

  • Band width - 4.67 mm

  • Length belt/tape/tie - 353.6 mm

  • Tie thickness - 1.19 mm

  • Min. tensile strength - 133 N

  • Operation temperature - -40...85 °C

Packaging

  • 1 each

GTIN

5414363067702

Supplier Ref

TYP28MX

Manufacturer Ref

TYP28MX

Commercial Reference

TYP28MX

Band width:

4.67 mm

Length belt/tape/tie:

353.6 mm

Tie thickness:

1.19 mm

Min. tensile strength:

133 N

Operation temperature:

-40...85 °C

Model:

Internal toothing

Band closure:

Steel nose

Material:

Plastic

Material quality:

Polypropylene (PP)

Surface treatment:

Untreated

UV-stable acc. ASTM D6779:

no

Halogen free:

yes

Colour:

Black

Transparent:

no

Reflective (fluorescent):

no

Text strip:

None

Solvable fastener:

no

Type of fastening:

None

VG approval:

no

MIL approval:

no

UL approval:

yes

Cable Tie, Black Polypropylene for Temperatures up to 85 Degrees Celsius (185 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 353.6mm (13.921 Inches), Width of 4.67mm (0.184 Inches), Thickness of 1.19mm (0.047 Inches), Tensile Strength Rating of 133 Newtons (30 Pounds)


  • Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
  • Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
  • The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
  • Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
