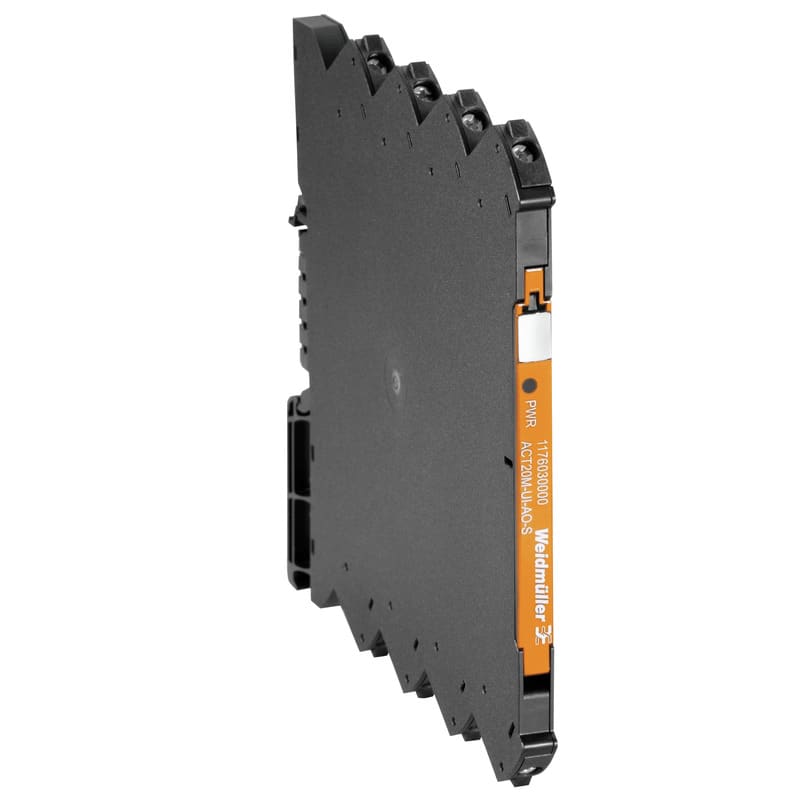

Weidmuller - ACT20M-AI-AO-E-S - 1176010000
/ each
£150.05
Delivery
Essential specifications
Number of channels - 1
IP-rating - IP20
Type of power supply - Active
Rated supply voltage at DC - 24...24 V
Number of input ranges -60 mV ... +60 mV - 0
Packaging
1 each
GTIN
4032248970094
Supplier Ref
1176010000
Manufacturer Ref
1176010000
Commercial Reference
1176010000
Number of channels:
1
IP-rating:
IP20
Type of power supply:
Active
Rated supply voltage at DC:
24...24 V
Number of input ranges -60 mV ... +60 mV:
0
Number of input ranges -100 mV ... +100 mV:
0
Number of input ranges -300 mV ... +300 mV:
0
Number of input ranges -500 mV ... +500 mV:
0
Number of input ranges -1 V ... +1 V:
0
Number of input ranges -2 V ... +2 V:
0
Number of input ranges -2.5 V ... +2.5 V:
0
Number of input ranges -5 V ... +5 V:
0
Number of input ranges -10 V ... +10 V:
0
Number of input ranges -20 V ... +20 V:
0
Number of input ranges 0 mV ... 60 mV:
0
Number of input ranges 0 mV ... 100 mV:
0
Number of input ranges 0 mV ... 200 mV:
0
Number of input ranges 0 mV ... 300 mV:
0
Number of input ranges 0 mV ... 500 mV:
0
Number of input ranges 0 V ... 1 V:
0
Number of input ranges 0 V ... 2 V:
0
Number of input ranges 0 V ... 2.5 V:
0
Number of input ranges 0 V ... 5 V:
1
Number of input ranges 0 V ... 10 V:
1
Number of input ranges 0 V ... 20 V:
0
Number of input ranges 0 V ... 30 V:
0
Number of input ranges 1 V ... 5 V:
1
Number of input ranges 2 V ... 10 V:
1
Number of input ranges 0 mA ... 5 mA:
0
Number of input ranges 0 mA ... 10 mA:
0
Number of input ranges 0 mA ... 20 mA:
1
Number of input ranges 4 mA ... 20 mA:
1
Number of output ranges 0 V ... 5 V:
1
Number of output ranges 0 V ... 10 V:
1
Number of output ranges 1 V ... 5 V:
1
Number of output ranges 2 V ... 10 V:
1
Number of output ranges 10 V ... 0 V:
0
Number of output ranges 0 mA ... 20 mA:
1
Number of output ranges 4 mA ... 20 mA:
1
Number of output ranges 20 mA ... 0 mA:
0
Number of output ranges 20 mA ... 4 mA:
0
Galvanic separation between supply voltage and all other current circuits:
yes
Height:
112.5 mm
Width:
6.1 mm
Depth:
114.3 mm
Power consumption:
0.56 W
Operation temperature:
0...70 °C
Device construction:
Built-in device
Type of electric plug connection:
Screw connection
Mounting method:
Snap mounting support rail
Signal converter/insulator, Configurable, without sensor supply, Input : I / U, Output : I / U
- The configurable DC isolating amplifier ACT20M-AI-AO-E-S isolates and converts analogue signals. An analogue input signal is linearly converted into an analogue output signal and galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation) by means of direct wiring or the Weidmüller rail bus.
