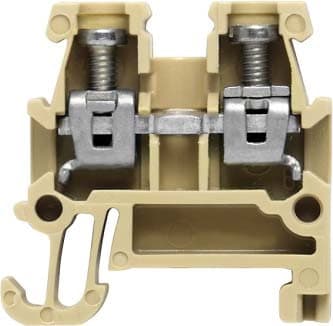

Weidmuller - AKZ 1.5 BL - 0340480000

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...1.5 mm²

Rated current In:

17.5 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail) 15 mm

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...1.5 mm²

Connectable conductor cross section solid-core:

0.5...2.5 mm²

Rated voltage:

250 V

Type of electrical connection 2:

Screw connection

Number of levels:

1

Material insulation body:

Thermoplastic

Operation temperature:

-50...100 °C

Width:

5.1 mm

Depth:

24.8 mm

Explosion-tested version 'Ex e':

yes

End plate required:

yes

Colour:

Blue

Internally connected levels:

no
