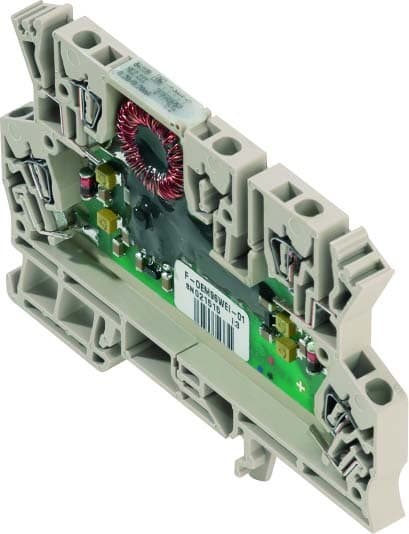

Weidmuller - MCZ CCC 0-20mA/0-20mA - 8411190000
/ 10 each
£98.51
Delivery
Essential specifications
Number of channels - 1
IP-rating - IP20
Type of power supply - Passive
Number of input ranges 0 mA ... 20 mA - 1
Number of output ranges 0 mA ... 20 mA - 1
Packaging
1 each
GTIN
4008190992736
Supplier Ref
8411190000
Manufacturer Ref
8411190000
Commercial Reference
8411190000
Number of channels:
1
IP-rating:
IP20
Type of power supply:
Passive
Number of input ranges 0 mA ... 20 mA:
1
Number of output ranges 0 mA ... 20 mA:
1
Number of output ranges 4 mA ... 20 mA:
1
Height:
91 mm
Width:
6 mm
Depth:
63.2 mm
Operation temperature:
-25...60 °C
Device construction:
Field device
Type of electric plug connection:
Spring clamp connection
Mounting method:
Snap mounting support rail
Signal converter/insulator, Signal converter/isolator, Tension-clamp connection, Input current loop feed
- Passive isolators for galvanic isolation of 0/4...20 mA standard signals.
- The component draws power from the measurement signal and requires no additional auxiliary power
- Low energy consumption, pick-up current of < 100 µA.
- 2-way isolation
