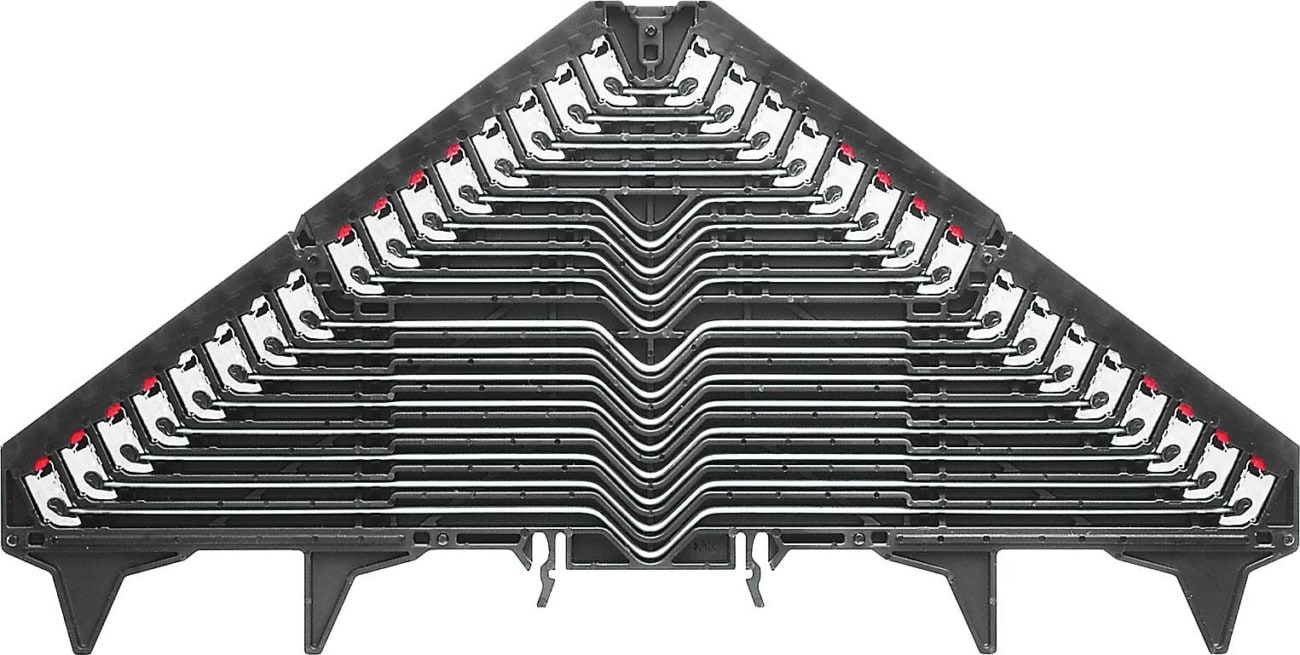

Weidmuller - PRV 16 SW 35X7.5 RT/WS - 1173680000

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...1.5 mm²

Rated current In:

6 A

Type of electrical connection 1:

Plug-in connection

Number of clamp positions per level:

4

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...1.5 mm²

Connectable conductor cross section solid-core:

0.5...1.5 mm²

Connectable conductor cross section multi-wired:

0.5...1.5 mm²

Rated voltage:

250 V

Type of electrical connection 2:

Plug-in connection

Number of levels:

16

Material insulation body:

Thermoplastic

Operation temperature:

-50...130 °C

Width:

9.2 mm

Depth:

225 mm

Explosion-tested version 'Ex e':

no

End plate required:

yes

Colour:

Black

Internally connected levels:

no
