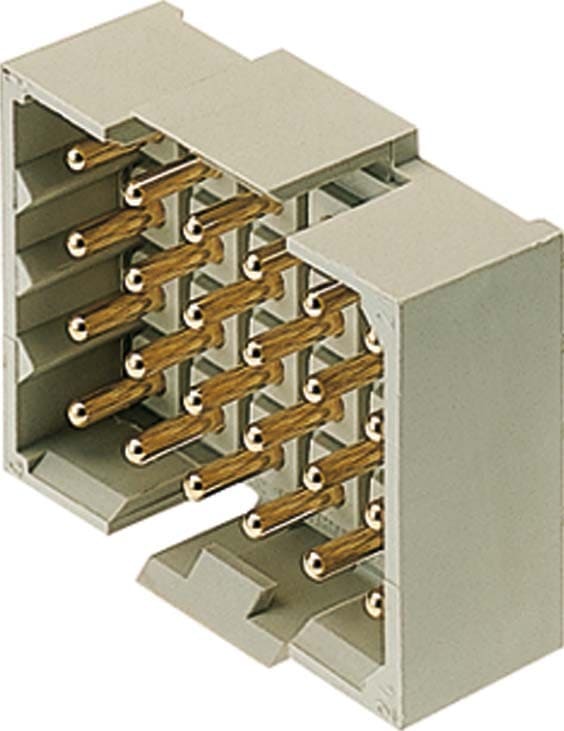

Weidmuller - RSV1,6 LS24 GR 4,5 SN - 1418500000

Type of connection:

Printed circuit board to cable

Contact type:

Pin

Number of poles:

24

Modular spacing contacts:

5 mm

Rated current In:

10 A

Number of plug-in contact rows:

4

Modular spacing connections:

5 mm

Angle PCB/contact:

90° (upwards vertical)

Rated voltage:

500 V

Rated surge voltage:

2.5 kV

Over voltage category:

II

Pollution degree:

2

Length pin:

4.5 mm

Material insulation body:

Thermoplastic

Housing colour:

Grey

Operation temperature:

100...100 °C

Type of PCB fastening:

Other

Type of fastening:

Solder

Type of banding:

Other
