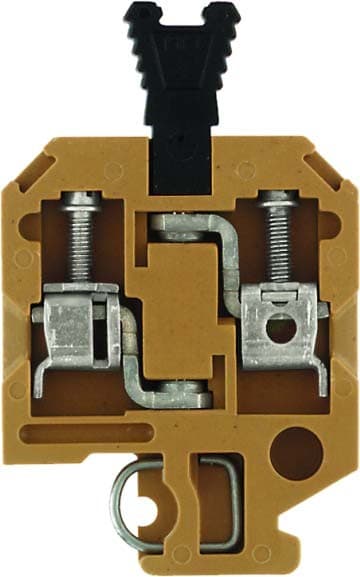

Weidmuller - SAKC 4 KRG - 0340720000

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...4 mm²

Rated current In:

25 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Type of slitting:

Pluggable

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...4 mm²

Connectable conductor cross section solid-core:

0.5...6 mm²

Connectable conductor cross section multi-wired:

1.5...4 mm²

Rated voltage:

400 V

Number of levels:

1

Internally connected levels:

no

Mounting method:

G-rail

Material insulation body:

Duroplast

Operation temperature:

-60...130 °C

Width:

6.5 mm

Depth:

40 mm

End plate required:

yes

Colour:

Yellow

Type of cross disconnection:

None

With integrated test socket:

no
