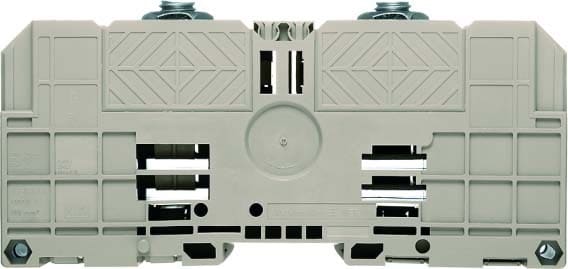

Weidmuller - WFF 185 - 1028600000

Connectable conductor cross section fine-strand without cable end sleeve:

10...240 mm²

Rated current In:

353 A

Type of electrical connection 1:

Bolt connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

10...240 mm²

Connectable conductor cross section solid-core:

10...240 mm²

Connectable conductor cross section multi-wired:

10...240 mm²

Rated voltage:

1000 V

Type of electrical connection 2:

Bolt connection

Number of levels:

1

Material insulation body:

Thermoplastic

Operation temperature:

-50...120 °C

Width:

55 mm

Depth:

163 mm

Explosion-tested version 'Ex e':

yes

End plate required:

yes

Colour:

Beige

Internally connected levels:

no
